Part Number: BFQ255A
MFG: PH
Package Cooled: N/A
Description: PNP video transistor in a SOT128B (TO-202) plastic package.NPN complements: BFQ235 and BFQ235A.
- Table of contents:
BFQ255A
-
Suppliers
DataSheet
General Description
BFQ255A General Description
PNP video transistor in a SOT128B (TO-202) plastic package.
NPN complements: BFQ235 and BFQ235A.
BFQ255A Maximum Ratings
| SYMBOL | PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
| VCBO | collector-base voltage BFQ255 BFQ255A |
open emitter |
- |
-100 -115 |
V |
| VCEO | collector-emitter voltage BFQ255 BFQ255A |
open base |
- |
-65 -95 |
V |
| VCER | emitter-base voltage BFQ255 BFQ255A |
RBE = 100 |
- |
-95 -110 |
V |
| VEBO | emitter-base voltage |
open collector |
- |
-3 |
V |
| IC | collector current (DC) |
- |
-300 |
mA | |
| Ptot | total power dissipation |
TS 100 °C; note 1; see Fig.3 |
- |
3 |
W |
| Tstg | storage temperature |
-65 |
+150 |
°C | |
| Tj | junction temperature |
- |
175 |
°C |
Note
1. Ts is the temperature at the soldering point of the collector pin.
BFQ255A Features
· High breakdown voltages
· Low output capacitance
· High gain bandwidth
· Good thermal stability
· Gold metallization ensures excellent reliability.
BFQ255A Typical Application
· Buffer/driver in high-resolution colour graphics monitors.

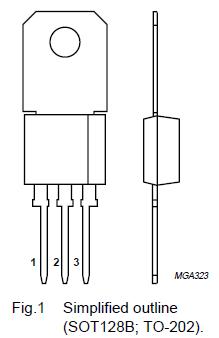

BFQ255A Connection Diagram
BFQ255A
PDF/DataSheet Download
- Datasheet: BFQ255A
- File Size: 65042 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
