Part Number: BGY1816



MFG: PHI



D/C: 09+

Description: The BGY1816 is a three-stage UHF amplifier module in a SOT365A package with a plastic cap. It consists of threeNPN ...


Urgent Purchase

BGY1816 General Description


The BGY1816 is a three-stage UHF amplifier module in a SOT365A package with a plastic cap. It consists of three
NPN silicon planar transistor dies mounted together with matching and bias circuit components on a metallized
ceramic AlN substrate.

BGY1816 Features

* 26 V nominal supply voltage
* 16 W output power into a load of 50  with an RF drive power of 63 mW.

BGY1816 Typical Application

* Base station transmitting equipment operating in the 1805 to 1880 MHz frequency band.

BGY1816 Connection Diagram

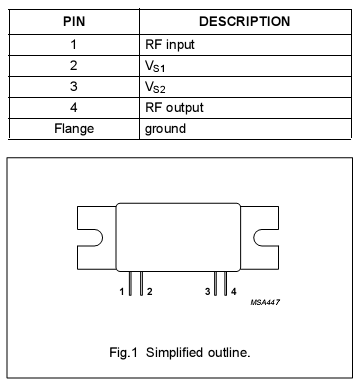

BGY1816 Connection Diagram

BGY1816 datasheet

BGY1816
PDF/DataSheet Download
