Product Details

Description



Features:

* 26 V nominal supply voltage
* 16 W output power into a load of 50 with an RF drive power of 25 mW.



Application

* Base station transmitting equipment operating in the 920 to 960 MHz frequency range.

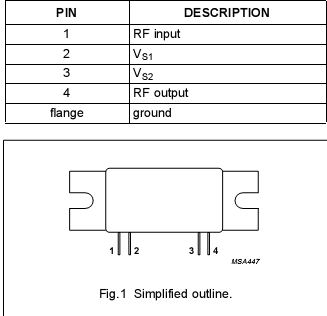

Pinout

  Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VS1 DC supply voltage 28 V
VS2 DC supply voltage 28 V
PD input drive power 80 mW
PL load power 25 W
Tstg storage temperature -30 100 C
Tmb operating mounting-base temperature -10 90 C



Description

The BGY916 is a three-stage UHF amplifier module in a SOT365A package. It consists of one NPN silicon planar
transistor die and two silicon MOS-FET dies mounted on a metallized ceramic AlN substrate, together with matching
and bias circuitry.
