Part Number: BH7801BK

MFG: ROHM

Package Cooled: QFP

Description: The BH7801BK incorporates the functions for a VHS audio signal processing system on a single chip. The circuits on the ...

BH7801BK General Description

The BH7801BK incorporates the functions for a VHS audio signal processing system on a single chip. The circuits on the chip are a peak-noise reduction processor (PNR), an FM modulator / demodulator circuit, an I / O switcher, an automatic FM detector circuit, an FM bandpass filter, and a regulator circuit.

BH7801BK Features

1) Operates off dual ± power supply which allows a large reduction in the number of coupling capacitors required. A built-in regulator makes it easy to construct a power supply system.
2) A two-line I²C BUS control decoder circuit is provided, allowing the various IC modes to be set using serial control.
3) A four line input switcher is included (tuner, BS, and line 1 / 2). The output switcher can switch between STREO, LEFT, and RIGHT, and Hi-Fi, MIX, and NORMAL, and a BS MONITOR function is also provided.
4) The PNR processor and FM modulator / demodulator circuit have reversed characteristics at recording and playback. In addition, the adjustment for carrier frequency and FM deviation / playback level are common.
5) The built-in bandpass filter excels at attenuation of other channels, and can be directly coupled to the playback amplifier. The FM recording output block has a high-performance low-pass filter to produce sine wave output.
6) Slope-control-type FM-switching-noise compensation circuit.
7) Envelope detector circuit and noise-detector-type automatic FM detector circuit.
8) VCO that uses the color signal sub-carrier frequency fsc (NTSC: 3.579545MHz, PAL: 4.433619MHz) and auto-adjusting BPF circuit ensure stable adjustment with no fluctuation due to mounting stress or time.

BH7801BK Typical Application

VCRs

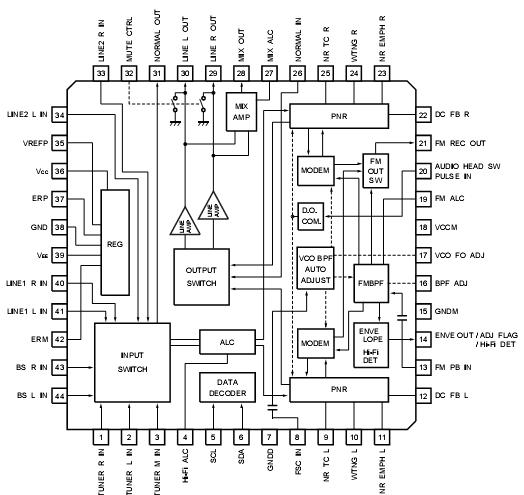

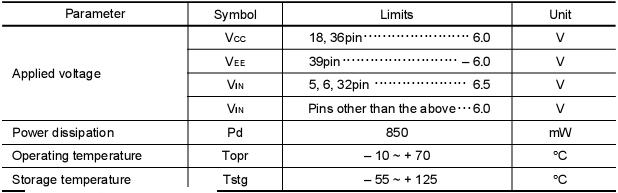

BH7801BK Connection Diagram
