General Description
BI30020B General Description
The BI30020B is the very right choice for 2.1 channel or 2 channel audio systems. The BI30020B is a newest generation of pure digital amplifier that is embedded with Digital Electronic Crossover, 12V Speaker Driver & Earphone Driver. Directly input 2 channel digital audio data, the BI30020B will generate 3 sets of signal for Left, Right and Sub-Woofer Channels. Each set of signal can select crossover frequency and Sub-Woofer's phase to drive speakers without external complicated Filter circuit. The powerful Audio Volume Control includes power-on Initial volume function, 32-Level Audio Volume Control and Mute Control. It also provides Volume Boost and Anti-Clipping function. The quality of sound is pure and full which is much different from the traditional Class AB Amplifier.
BI30020B Maximum Ratings
| SYMBOL | PARAMETER | VALUE | UNIT |
| VDDA | Speaker Driver Power Supply Voltage | -0.3 to 13.5 | V |
| VDD | Digital Amplifier Kernel Power Supply Voltage | -0.3 to 3.6 | V |
| VIN | Input Signal Voltage | -0.3 to VDD +0.3 | V |
| Ta | Operating Temperature | -40 ~ +85 | |
| Tst | Storage Temperature | -40 ~ +150 |
Exposure to absolute-maximum-rating conditions for extended periods may affect device reliability.
BI30020B Features
`Operation Voltage:
`Digital Part: 3.0 ~ 3.6V
`Speaker Driver: 3.0 ~ 13.5V
`Earphone Driver:3.0 ~ 3.6V
`Operation Frequency:
`Accept 512xFS or 45.1584 ~ 49.152MHz For Operation
`Audio Data Input Interface:
`When Use Internal SRC, Accept 29 ~ 96KHz Wide Continue Sample Rate Range
`When Use External 512xFS Clock Source, Accept 8K ~ 96KHz Sample Rate
`Support I2S, Left-Justified, & Right-Justified Format
`Auto Adapt Word Length For Left & Right Channel In I2S & Left-Justified Mode
`Provide 24/20/18/16-Bits Word Length Select For Left & Right Channel In Right-Justified Mode
`Provide Left/Right Frame Select Exchange Function
`Provide Serial Clock Positive or Negative Latch Data Select
`Control Interface:
`Provide Hardware Mode Without MCU
`Provide I2C Control Mode
`Crossover Frequency Select:
`14 Crossover Frequency Selects Through External Pin
`Crossover Frequency from 150Hz To 800 Hz, 50Hz For Each Step
`Speaker Driver:
`Provide 2 Channel or 2.1 Channel Output Configuration
`Main Channel:
`Output Can Select Bypass or Through Internal Digital High Pass Filter Circuit
`Provide Embedded Left/Right Channel Speaker Driver
( 2 x 6.5W @13.5V, 10% THD, 8 Ohm Load at 2.1 Channel or
2 x 11.8W @13.5V, 10% THD, 4 Ohm Load at 2 Channel)
`Sub-Woofer Channel:
`Generate Sub-Woofer Channel Data From Main Channel Data
`Sub-Woofer Channel Can Select 0 or 180 degree Output Phase
`Proved Embedded Sub-Woofer Channel Speaker Driver
(1 x 11.8W @13.5V, 10% THD, 4 Ohm Load at 2.1 Channel)
`Earphone Channel
`Provide 3 or 4-Wire Type Earphone Connection
`Audio Volume Control:
`Provide 32 Level Volume Select
`Set Power-On Initial Volume Value Through External Pin (Volume Value: Mute, 9, 16 & Max)
`Main & Sub-Woofer Channel Volume Adjust Independent or Together Through External Pin in Hardware Mode
`Main & Sub-Woofer Channel Have Digital Audio Volume Control Separately
`Main Channel & Earphone Use Same Volume Control
`Provide Volume Boost & Anti-Clipping Function Enable/Disable
`Mute Control:
`Set Main & Sub-Woofer Mute Enable/Disable
`Temperature Sensor:
`Active Temperature Sensor Through External Pin
`Temperature Sensor Will Shut Down Speaker Driver When Chip Internal Temperature Over 125
`Output Control Interface:
`Treble Level Control
`Bass Level Control
`Balance Channel Control
`Package Type:
`HQFP 100 Pin (14x20x3.2mm)
`Digital Part: 3.0 ~ 3.6V
`Speaker Driver: 3.0 ~ 13.5V
`Earphone Driver:3.0 ~ 3.6V
`Operation Frequency:
`Accept 512xFS or 45.1584 ~ 49.152MHz For Operation
`Audio Data Input Interface:
`When Use Internal SRC, Accept 29 ~ 96KHz Wide Continue Sample Rate Range
`When Use External 512xFS Clock Source, Accept 8K ~ 96KHz Sample Rate
`Support I2S, Left-Justified, & Right-Justified Format
`Auto Adapt Word Length For Left & Right Channel In I2S & Left-Justified Mode
`Provide 24/20/18/16-Bits Word Length Select For Left & Right Channel In Right-Justified Mode
`Provide Left/Right Frame Select Exchange Function
`Provide Serial Clock Positive or Negative Latch Data Select
`Control Interface:
`Provide Hardware Mode Without MCU
`Provide I2C Control Mode
`Crossover Frequency Select:
`14 Crossover Frequency Selects Through External Pin
`Crossover Frequency from 150Hz To 800 Hz, 50Hz For Each Step
`Speaker Driver:
`Provide 2 Channel or 2.1 Channel Output Configuration
`Main Channel:
`Output Can Select Bypass or Through Internal Digital High Pass Filter Circuit
`Provide Embedded Left/Right Channel Speaker Driver
( 2 x 6.5W @13.5V, 10% THD, 8 Ohm Load at 2.1 Channel or
2 x 11.8W @13.5V, 10% THD, 4 Ohm Load at 2 Channel)
`Sub-Woofer Channel:
`Generate Sub-Woofer Channel Data From Main Channel Data
`Sub-Woofer Channel Can Select 0 or 180 degree Output Phase
`Proved Embedded Sub-Woofer Channel Speaker Driver
(1 x 11.8W @13.5V, 10% THD, 4 Ohm Load at 2.1 Channel)
`Earphone Channel
`Provide 3 or 4-Wire Type Earphone Connection
`Audio Volume Control:
`Provide 32 Level Volume Select
`Set Power-On Initial Volume Value Through External Pin (Volume Value: Mute, 9, 16 & Max)
`Main & Sub-Woofer Channel Volume Adjust Independent or Together Through External Pin in Hardware Mode
`Main & Sub-Woofer Channel Have Digital Audio Volume Control Separately
`Main Channel & Earphone Use Same Volume Control
`Provide Volume Boost & Anti-Clipping Function Enable/Disable
`Mute Control:
`Set Main & Sub-Woofer Mute Enable/Disable
`Temperature Sensor:
`Active Temperature Sensor Through External Pin
`Temperature Sensor Will Shut Down Speaker Driver When Chip Internal Temperature Over 125
`Output Control Interface:
`Treble Level Control
`Bass Level Control
`Balance Channel Control
`Package Type:
`HQFP 100 Pin (14x20x3.2mm)
BI30020B Typical Application
·Note-book/Desktop PC/LCD Monitor/TV Surround Sound Systems
·Portable DVD/VCD/CD/MP3 Speakers and Headphones
·Video Game Speakers
·Portable DVD/VCD/CD/MP3 Speakers and Headphones
·Video Game Speakers

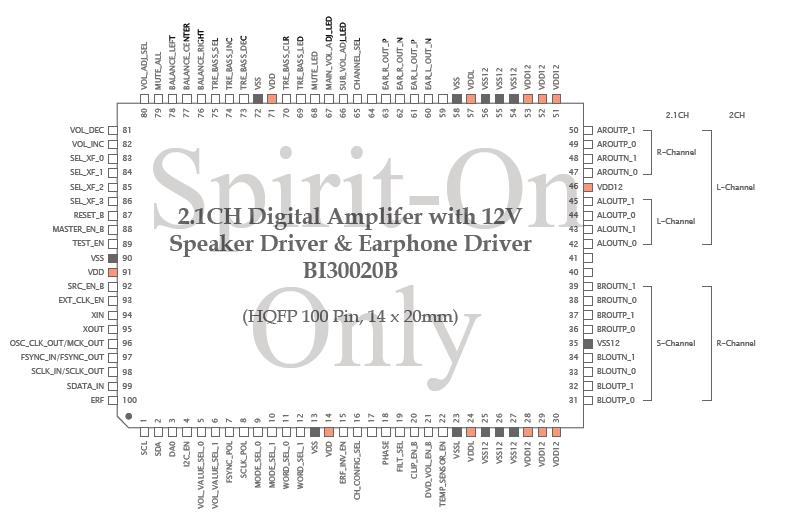

BI30020B Connection Diagram
BI30020B
