Part Number: BLF2043



MFG: NXP



D/C: 09+

Description: Silicon N-channel enhancement mode lateral D-MOS transistor encapsulated in a 2-lead flangeless package (SOT538A) with ...


Urgent Purchase

BLF2043 General Description


Silicon N-channel enhancement mode lateral D-MOS transistor encapsulated in a 2-lead flangeless package (SOT538A) with a ceramic cap. The common source is connected to the mounting base.

BLF2043 Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDS drain-source voltage 75 V
VGS gate-source voltage ±15 V
ID DC drain current 2.2 A
Ptot total power dissipation Tmb 25 °C tbf W
Tstg storage temperature -65 150 C
Tj junction temperature 200 C

BLF2043 Features

* High power gain
* Easy power control
* Excellent ruggedness
* Source on mounting base eliminates DC isolators, reducing common mode inductance
* Designed for broadband operation (HF to 2.2 GHz).

BLF2043 Typical Application

 Communication transmitter applications in the UHF frequency range.

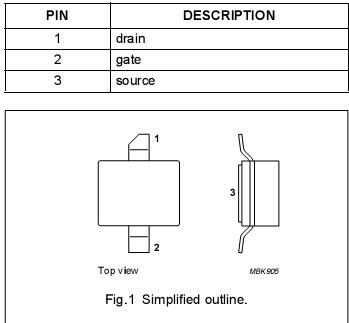

BLF2043 Connection Diagram

BLF2043 Connection Diagram
