Part Number: BLF2048



MFG: NXP



D/C: 09+

Description: Push-pull silicon N-channel enhancement mode lateral D-MOStransistorencapsulatedina4-leadflangepackage (SOT539A) with a...


Urgent Purchase

BLF2048 General Description


Push-pull silicon N-channel enhancement mode lateral D-MOStransistorencapsulatedina4-leadflangepackage (SOT539A) with a ceramic cap. The common source is connected to the mounting flange.

BLF2048 Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDS drain-source voltage 65 V
VGS gate-source voltage ±15 V
ID DC drain current 18 A
Tstg storage temperature -65 150 C
Tj junction temperature 200 C

BLF2048 Features

* High power gain
* Easy power control
* Excellent ruggedness
* Source on underside eliminates DC isolators, reducing common mode inductance
* Designed for broadband operation (HF to 2.2 GHz).

BLF2048 Typical Application

* Common source class-AB operation for PCN and PCS applications in the 1800 to 2200 MHz frequency range.

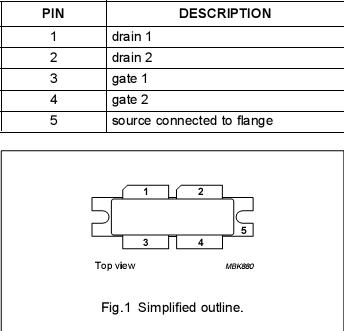

BLF2048 Connection Diagram

BLF2048 Connection Diagram

BLF2048 datasheet

BLF2048
