BLS2731-10

Features: * Suitable for short and medium pulse applications* Internal input and output matching networks for an easy circuit design* Emitter ballasting resistors improve ruggedness* Gold metallization ensures excellent reliability* Interdigitated emitter-base structure provides high emitter effic...

product image

BLS2731-10 Picture
See larger image
SeekIC No. : 004300642 Detail

BLS2731-10: Features: * Suitable for short and medium pulse applications* Internal input and output matching networks for an easy circuit design* Emitter ballasting resistors improve ruggedness* Gold metallizat...

BLS2731-10 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BLS2731-10
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Suitable for short and medium pulse applications
* Internal input and output matching networks for an easy circuit design
* Emitter ballasting resistors improve ruggedness
* Gold metallization ensures excellent reliability
* Interdigitated emitter-base structure provides high emitter efficiency
* Multicell geometry improves power sharing and reduces thermal resistance.


Application

* Common base class-C pulsed power amplifier for radar applications in the 2.7 to 3.1 GHz band.


Pinout

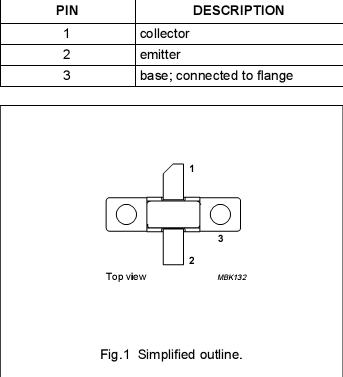

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 75 V
VCES collector-emitter voltage RBE = 0  75 V
VEBO emitter-base voltage open collector 2 V
ICM peak collector current tp  100 us; 10% 1.5 A
Ptot total power dissipation tp = 100 us;   = 10%; Tmb = 25  145 W
Tstg storage temperature -65 200
Tj operating junction temperature 200
Tsld soldering temperature up to 0.2 mm from ceramic cap; t 10 s 235



Description

NPN silicon planar epitaxial microwave power transistor BLS2731-10 in a 2-lead rectangular flange package with a ceramic cap (SOT445C) with the common base connected to the flange.
