Product Details

Description

Features:

* Suitable for short and medium pulse applications
* Internalinputandoutputmatchingnetworksforaneasy circuit design
* Emitter ballasting resistors improve ruggedness
* Gold metallization ensures excellent reliability
* Interdigitated emitter-base structure provides high emitter efficiency
* Multicellgeometryimprovespowersharingandreduces thermal resistance.

Application

* Commonbase class-C pulsedpower amplifier forradar applications in the 3.1 to 3.5 GHz range.

Pinout

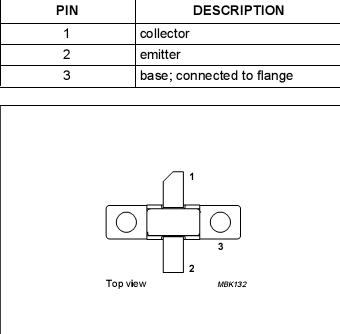

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VCBO	collector-base voltage	open emitter		75	V
VCES	collector-emitter voltage	RBE = 0		75	V
VEBO	emitter-base voltage	open collector		2	V
ICM	peak collector current	tp 100 us; 10%		1.5	A
Ptot	total power dissipation	tp = 100 us; = 10%; Th = 25		145	W
Tstg	storage temperature		-65	200
Tj	operating junction temperature			200
Tsld	soldering temperature	up to 0.2 mm from ceramic cap; t 10 s		235

Description

NPNsili conplan are pitaxial microwave power transistorin BLS3135-10 a 2-lead rectangular flange package with a ceramic cap (SOT445C) with the common base connected to the flange.
