Product Details

Description



Features:

* High efficiency
* High gain
* Internal pre-matched input
* Low supply voltage.


Application

* Hand-held radio equipment in common emitter class-AB operation for 900 MHz communication systems.

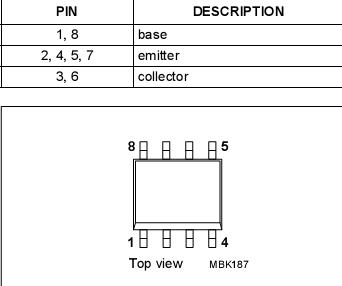

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 14 V
VCES collector-emitter voltage open base  7 V
VEBO emitter-base voltage open collector 3 V
IC peak collector current 0.8 A
Ptot total power dissipation Ts =60 °C; note 1 4 W
Tstg storage temperature -65 +150
Tj operating junction temperature 175



Description

NPN silicon planar epitaxial power transistor BLT61 encapsulated in a SOT96-1(SO8) package.
