Part Number: BLT94
Description: NPN silicon planar epitaxial power transistor encapsulated in a ceramic SOT409A package.
- Table of contents:
BLT94
-
Suppliers
DataSheet
General Description
BLT94 General Description
NPN silicon planar epitaxial power transistor encapsulated in a ceramic SOT409A package.
BLT94 Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
| VCBO | collector-base voltage | open emitter | 20 | V | |
| VCES | collector-emitter voltage | open base | 10 | V | |
| VEBO | emitter-base voltage | open collector | 3 | V | |
| IC | peak collector current | 2.5 | A | ||
| Ptot | total power dissipation | Tmb 60 | 13 | W | |
| Tstg | storage temperature | -65 | +150 | ||
| Tj | operating junction temperature | 200 |
BLT94 Features
* Emitter ballasting resistors for an optimum temperature profile
* Gold metallization ensures excellent reliability.
* Gold metallization ensures excellent reliability.
BLT94 Typical Application
* Common emitter class-AB and B operation in portable radio transmitters in the 900 MHz communication band.

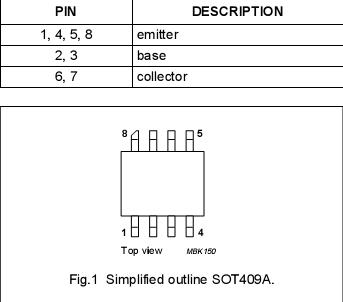

BLT94 Connection Diagram
BLT94
