Product Details

Description



Features:

* SMD encapsulation
* Emitter-ballasting resistors for optimum temperature profile
* Gold metallization ensures excellent reliability.

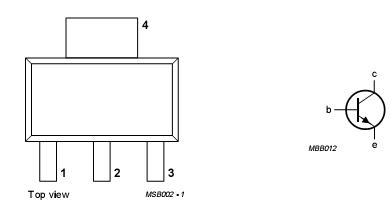

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 32 V
VCES collector-emitter voltage open base  16 V
VEBO emitter-base voltage open collector 3 V
IC,IC(AV) collector current DC or average value 200 mA
ICM peak collector current peak value f > 1 MHz 600 mA
Ptot total power dissipation f > 1 MHz;Ts = 129 °C
(note 1)		 2 W
Tstg storage temperature -65 +150
Tj operating junction temperature 175



Description

NPN silicon planar epitaxial transistor BLU86 encapsulated in a SOT223 surface mounted envelope and designed primarily for use in mobile radio equipment in the 900 MHz communications band.
