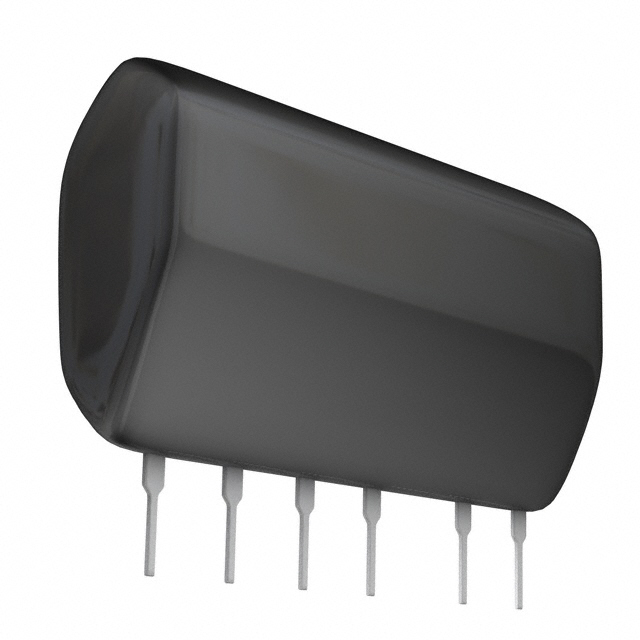

BP5039A

Duty Cycle (Max) :
Switching Frequency :
Supply Current :
Output Voltage :
Mounting Style :
Package / Case :
Packaging : Bulk
Operating Temperature Range : - 20 C to + 80 C
Input / Supply Voltage (Min) : 113 V
Input / Supply Voltage (Max) : 170 V


Features:

1) Elimination of a transformer enables compact, lightweight power supply boards.
2) Wide input voltage range.(80 to 120Vrms for AC voltage conversion.)
3) DC power supply can be easily configured, with few attachments.
4) Because no transformer is used, the power supply board is less vulnerable to splitting or cracking from impact or shock.
5) Allow easy assemblage of components.


Application

Power supply circuits for vacuum cleaners, washing machines, refrigerators, electric carpets, electric rice cookers and crock pots, irons, cordless telephones, air conditioners, air purifiers, humidifiers, dehumidifiers, illumination devices and other small household appliance, as well as power supply circuits for gas, fire and smoke alarms, DC motors, sensors, and other similar devices.


Specifications

Parameter	Symbol	Limits	Unit
Power supply voltage	VIN	170	V
Output current	IO	200	mA
Operating temperature range	Topr	−20~+80	°C
Storage temperature range	Tstg	−25~+105	°C

Description

The BP5039-12, BP5039-15 and BP5039A are AC / DC converters which provide DC output from a commercial power supply (100V AC). Using these modules enable simple, easy drive of microcomputers, LEDs, and many other electronic components without using a transformer. BP5039A allow set PCBs to be kept compact and lightweight, with extremely few attachments.


Parameters:

Technical/Catalog Information	BP5039A
Vendor	Rohm Semiconductor
Category	Power Supplies
Number of Outputs	1
Power (Watts)	4.8W
Voltage - Output	24V
Voltage - Input	100V
Power Supply Type	Switching (Closed Frame)
1st Output	24 VDC @ 200mA
2nd Output	-
3rd Output	-
4th Output	-
Mounting Type	Through Hole
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BP5039A BP5039A
