BP5085-15

AC/DC Switching Converters IC DUAL

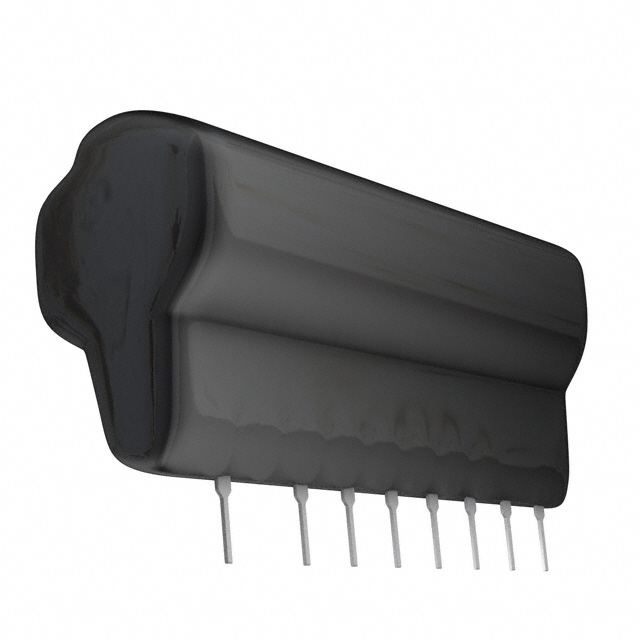

product image

BP5085-15 Picture
See larger image
SeekIC No. : 00477763 Detail

BP5085-15: AC/DC Switching Converters IC DUAL

BP5085-15 Data Sheet

floor Price/Ceiling Price

US $ 3.34~7.48 / Piece | Get Latest Price
Part Number:
BP5085-15
Mfg:
ROHM Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~75
  • 75~150
  • 150~525
  • Unit Price
  • $7.48
  • $3.5
  • $3.34
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Output Voltage : 5 V, 15 V Input / Supply Voltage (Max) : 358 V
Input / Supply Voltage (Min) : 226 V Operating Temperature Range : - 20 C to + 80 C
Mounting Style : Through Hole Package / Case : SIP-16
Packaging : Bulk

Description

Duty Cycle (Max) :
Switching Frequency :
Supply Current :
Mounting Style : Through Hole
Packaging : Bulk
Operating Temperature Range : - 20 C to + 80 C
Input / Supply Voltage (Min) : 226 V
Input / Supply Voltage (Max) : 358 V
Output Voltage : 5 V, 15 V
Package / Case : SIP-16


Specifications

Parameter Symbol Limits Unit
Input voltage Vi 400 *1 V
Maximum output current(15V) I15oMAX 80 *2 mApk
Maximum output current(5V) I5oMAX 350 *2 mApk
ESD endurance Vsurge 2 kV
Operating temperature range Topr −20 ~ +80 °C
Storage temperature range Tstg −25 ~ +105 °C

*1 Maximum input voltage at steady mode is 358V, but the over-applied voltage is 400Vpk, within 10 seconds.
*2 Maximum output current is the peak of load current after the output smoothing capacitor. The maximum heating part of this module have to be below 150°C including self-heating and ambient temperature. And the average current must be in the range of electrical characteristics below.


Parameters:

Technical/Catalog InformationBP5085-15
VendorRohm Semiconductor
CategoryPower Supplies
Number of Outputs2
Power (Watts)2.9W
Voltage - Output15V, 5V
Voltage - Input220VAC
Power Supply TypeSwitching (Closed Frame)
1st Output15 VDC @ 80 mA
2nd Output5 VDC @ 350mA
3rd Output-
4th Output-
Mounting TypeThrough Hole
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BP5085 15
BP508515
