General Description
BPW20R General Description
BPW20R is a planar Silicon PN photodiode in a hermetically sealed short TO5 case, especially designed for high precision linear applications.
Due to its extremely high dark resistance, the short circuit photocurrent is linear over seven decades of illumination level.
On the other hand, there is a strictly logarithmic correlation between open circuit voltage and illumination over the same range.
Equipped with a clear, flat glass window, the spectral responsitivity reaches from blue to near infrared.
BPW20R Maximum Ratings
| Parameter | Test Conditions | Symbol | Value | Unit |
| Reverse Voltage | VR | 10 | V | |
| Power Dissipation | Tamb 50 | PV | 300 | mW |
| Junction Temperature | Tj | 125 | ||
| Operating Temperature Range | Tamb | 55...+125 | ||
| Storage Temperature Range | Tstg | 55...+100 | ||
| Soldering Temperature | t 3 s | Tsd | 245 | |
| Thermal Resistance Junction/Ambient | RthJA | 350 | K/W |
BPW20R Features
Hermetically sealed TO5 case
Flat glass window
Cathode connected to case
Wide viewing angle = ± 50 o
Large radiant sensitive area (A=7.5 mm 2)
Suitable for visible and near infrared radiation
High sensitivity UV enhanced
Low dark current High shunt resistance
Excellent linearity For photodiode and photovoltaic cell operation
Flat glass window
Cathode connected to case
Wide viewing angle = ± 50 o
Large radiant sensitive area (A=7.5 mm 2)
Suitable for visible and near infrared radiation
High sensitivity UV enhanced
Low dark current High shunt resistance
Excellent linearity For photodiode and photovoltaic cell operation
BPW20R Typical Application
Sensor for light measuring techniques in cameras, photometers, color analyzers, exposure meters (e.g. solariums) and other medical and industrial measuring and control applications.
BPW20R
PDF/DataSheet Download
- Datasheet: BPW20R
- File Size: 80721 KB
- Manufacturer: VISAY [Vishay Siliconix]
- Click here to Download
- ·BPW14N
- TEMIC [TEMIC Semiconductors]
- Silicon NPN Phototransistor
- 112241 KB
- ·BPW14NB
- TEMIC [TEMIC Semiconductors]
- Silicon NPN Phototransistor
- 112241 KB
- ·BPW14NC
- TEMIC [TEMIC Semiconductors]
- Silicon NPN Phototransistor
- 112241 KB
- ·BPW16
- VISAY [Vishay Siliconix]
- Silicon NPN Phototransistor
- 77824 KB
- ·BPW16N
- VISAY [Vishay Siliconix]
- Silicon NPN Phototransistor
- 77824 KB
- ·BPW17N
- VISAY [Vishay Siliconix]
- Silicon NPN Phototransistor
- 77731 KB
- ·BPW21
- VISAY [Vishay Siliconix]
- Silicon PN Photodiode
- 74984 KB
- ·BPW21R
- VISAY [Vishay Siliconix]
- Silicon PN Photodiode
- 74984 KB
BPW20R Relative Products
BPW17N
The BPW17N is Silicon NPN Phototransistor, RoHS Compliant
BPW16N
BPW16N is a silicon NPN epitaxial planar phototransistor in a miniature plastic case with flat window.With a lead center to center spacing of 2.54mm and a package width of 2.4mm the devices are easily stackable on PC boards and assembled to arrays of unlimit...
BPW14N
BPW14N is a high speed silicon NPN epitaxial planar phototransistor in a standard TO18 hermetically sealed metal case. BPW14N glass lens, featuring a viewing angle of ±12 makes it insensible to ambient straylight. A base terminal is available to enable biasi...
BPV484-1028-26AB95
BPV23NFL
Silicon PIN Photodiode, RoHS Compliant
BPV23NF

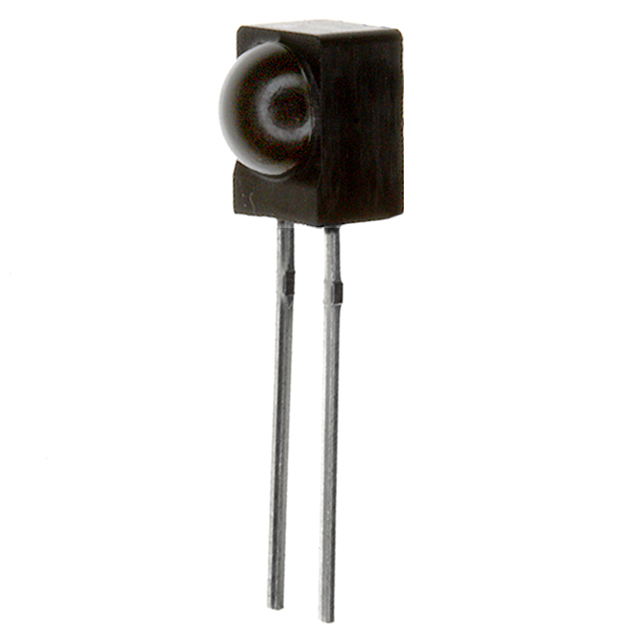

Silicon PIN Photodiode, RoHS Compliant BPV23NF(L) is a high speed and high sensitive PIN photodiode in a plastic package with a spherical side view lens.The epoxy package itself is an IR filter, spectrally matched to GaAs on GaAs and GaAlAs on GaAlAs IR emi...
