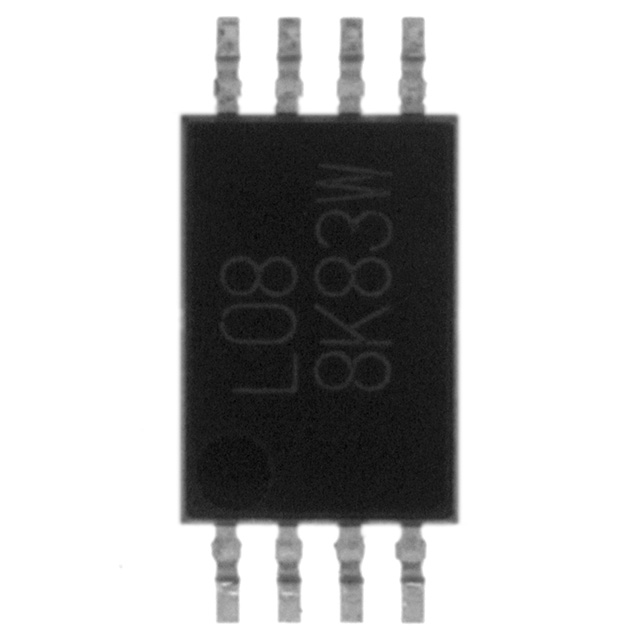

BR24C16F Product Image

BR2 Series Datasheet download

Five Points

Part Number: BR24C16F



MFG: ROHM

Package Cooled: SOIC-8

D/C: 02+

Description: The BR24C08, BR24C16 and BR24E16 series are 2-wire (I C BUS type) serial EEPROMs which are electricallyprogrammable...


Urgent Purchase

BR24C16F General Description


The BR24C08, BR24C16 and BR24E16 series are 2-wire (I C BUS type) serial EEPROMs which are electrically
programmable.

BR24C16F Maximum Ratings

Parameter
Symbol
Limits
Unit
Supply voltage
VCC
-0.3 to +6.5
V
Power dissipation
Pd
800(DIP8) *1
mW
450(SOP8, SOP-J8) *2
800(DIP8) *3
Storage temperature
Tstg
-65 to +125
°C
Operating temperature
Topr
-40 to +85
°C
Terminal voltage
-
-0.3 to VCC+0.3
V

*1 Reduced by 3.0mW for each increase in Ta of 1°C over 25°C.
*2 Reduced by 3.5mW for each increase in Ta of 1°C over 25°C.
*3 Reduced by 5.0mW for each increase in Ta of 1°C over 25°C.

BR24C16F Features

  1) 1k x 8 bits serial EEPROM.
       (BR24C08 / F / FJ / FV)
       2k x 8 bits serial EEPROM.
       (BR24C16 / F / FJ / FV, BR24E16 / F / FJ / FV)
  2) Two wire serial interface.
       (2Byte Address : BR24E16)
  3) Operating voltage range : 2.7V~5.5V
  4) Low current consumption
      Active  (at 5V) : 2.0mA (Typ.)
      Standby (at 5V) : 1.0A (Typ.)
  5) Auto erase and auto complete functions can be used during write operations.
  6) Page write function : 16byte
  7) DATA security
      Write protect feature
      Inhibit to WRITE at low Vcc
  8) Noise filters at SCL and SDA pins.
  9) Address can be incremented automatically during read operations.
10) Compact packages.
11) Rewriting possible up to 100,000 times.
12) Data can be stored for ten years without corruption.
