BR24L08-W

EEPROM 2 WIRE SERIAL 8K

product image

BR24L08-W Picture
See larger image
SeekIC No. : 00458281 Detail

BR24L08-W: EEPROM 2 WIRE SERIAL 8K

BR24L08-W Data Sheet

floor Price/Ceiling Price

US $ .19~.19 / Piece | Get Latest Price
Part Number:
BR24L08-W
Mfg:
ROHM Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~2000
  • Unit Price
  • $.19
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Memory Size : 8 Kbit Organization : 1 K x 8
Data Retention : 40 Years Maximum Clock Frequency : 0.1 MHz
Maximum Operating Current : 1.2 mA Operating Supply Voltage : 2.5 V, 3.3 V, 5 V
Maximum Operating Temperature : + 85 C Mounting Style : SMD/SMT
Package / Case : SOP-8

Description

Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT
Operating Supply Voltage : 2.5 V, 3.3 V, 5 V
Maximum Clock Frequency : 0.1 MHz
Memory Size : 8 Kbit
Organization : 1 K x 8
Data Retention : 40 Years
Package / Case : SOP-8
Maximum Operating Current : 1.2 mA


Features:

 1) 1024 registers * 8 bits serial architecture.
 2) Single power supply (1.8V to 5.5V).
 3) Two wire serial interface.
 4) Self-timed write cycle with automatic erase.
 5) 16byte Page Write mode.
 6) Low power consumption.
       Write     (5V) : 1.5mA (Typ.)
       Read   (5V) : 0.2mA (Typ.)
       Standby (5V) : 0.1A (Typ.)
 7) DATA security
       Write protect feature (WP pin).
       Inhibit to WRITE at low VCC.
 8) Small package - - - DIP8 / SOP8 / SOP-J8 / SSOP-B8 / MSOP-8
 9) High reliability EEPROM with Double-Cell structure.
10) High reliability fine pattern CMOS technology.
11) Endurance : 1,000,000 erase / write cycles
12) Data retention : 40 years
13) Filtered inputs in SCL*SDA for noise suppression.
14) Initial data FFh in all address.


Application

General purpose

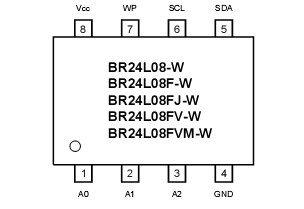

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Limits
Unit
Supply voltage
VCC
-0.3 to +6.5
V
Power dissipation
Pd
800(DIP8) *1
mW
450(SOP8) *2
450(SOP-J8) *2
300(SSOP-B8) *3
310(MSOP8) *4
Storage temperature
Tstg
-65 to +125
°C
Operating temperature
Topr
-40 to +85
°C
Terminal voltage
-
-0.3 to VCC+0.3
V

*1  Reduced by 8.0mW for each increase in Ta of 1°C over 25°C.
*2  Reduced by 4.5mW for each increase in Ta of 1°C over 25°C.
*3  Reduced by 3.0mW for each increase in Ta of 1°C over 25°C.
*4  Reduced by 3.1mW for each increase in Ta of 1°C over 25°C.
