BR24L32FJ-W
-
Suppliers
DataSheet
General Description
BR24L32FJ-W Maximum Ratings
| Parameter |
Symbol |
Limits |
Unit |
| Supply voltage |
VCC |
-0.3 to +6.5 |
V |
| Power dissipation |
Pd |
800(DIP8) *1 |
mW |
|
450(SOP8) *2 | |||
|
450(SOP-J8) *2 | |||
|
300(SSOP-B8) *3 | |||
|
310(MSOP8) *4 | |||
| Storage temperature |
Tstg |
-65 to +125 |
°C |
| Operating temperature |
Topr |
-40 to +85 |
°C |
| Terminal voltage |
- |
-0.3 to VCC+0.3 |
V |
*1 Degradation is done at 8.0mW/°C for operation above 25°C.
*2,3 Degradation is done at 4.5mW/°C for operation above 25°C.
*4 Degradation is done at 3.0mW/°C for operation above 25°C.
BR24L32FJ-W Features
1) 4k registers * 8 bits serial architecture.
2) Single power supply (1.8V to 5.5V).
3) Two wire serial interface.
4) Automatic erase.
5) 32byte Page Write Mode.
6) Low power consumption.
Write (5V) : 1.5mA (Typ.)
Read (5V) : 0.2mA (Typ.)
Standby (5V) : 0.1A (Typ.)
7) DATA security
Write protect feature (WP pin).
Inhibit to WRITE at low VCC.
8) Small package - - - DIP8 / SOP8 / SSOP-B8 pin
9) High reliability EEPROM with Double-Cell structure.
10) High reliability fine pattern CMOS technology.
11) Endurance : 1,000,000 erase / write cycles
12) Data retention : 40 years
13) Filtered inputs in SCL,SDA for noise suppression.
14) Initial data FFh in all address.
2) Single power supply (1.8V to 5.5V).
3) Two wire serial interface.
4) Automatic erase.
5) 32byte Page Write Mode.
6) Low power consumption.
Write (5V) : 1.5mA (Typ.)
Read (5V) : 0.2mA (Typ.)
Standby (5V) : 0.1A (Typ.)
7) DATA security
Write protect feature (WP pin).
Inhibit to WRITE at low VCC.
8) Small package - - - DIP8 / SOP8 / SSOP-B8 pin
9) High reliability EEPROM with Double-Cell structure.
10) High reliability fine pattern CMOS technology.
11) Endurance : 1,000,000 erase / write cycles
12) Data retention : 40 years
13) Filtered inputs in SCL,SDA for noise suppression.
14) Initial data FFh in all address.
BR24L32FJ-W Typical Application
General purpose
BR24L32FJ-W Connection Diagram
BR24L32FJ-W
PDF/DataSheet Download
- Datasheet: BR24L32FJ-W
- File Size: 311088 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
- ·BR2020
- PANASONIC [Panasonic Semiconductor]
- Poly-carbonmonofluride Lithium Coin Batterise Individual Specifications
- 40668 KB
- ·BR2032
- PANASONIC [Panasonic Semiconductor]
- Poly-carbonmonofluride Lithium Coin Batterise Individual Specifications
- 40668 KB
- ·BR211
- PHILIPS [Philips Semiconductors]
- Breakover diodes
- 33450 KB
- ·BR211-140
- PHILIPS [Philips Semiconductors]
- Breakover diodes
- 33450 KB
- ·BR211-160
- PHILIPS [Philips Semiconductors]
- Breakover diodes
- 33450 KB
- ·BR211-180
- PHILIPS [Philips Semiconductors]
- Breakover diodes
- 33450 KB
- ·BR211-200
- PHILIPS [Philips Semiconductors]
- Breakover diodes
- 33450 KB
- ·BR211-220
- PHILIPS [Philips Semiconductors]
- Breakover diodes
- 33450 KB
BR24L32FJ-W Relative Products
BR24L32-FJ
BR24L32-F
BR24L32
[ Product description ] ?ROHM's high reliability serial EEPROMs BR24L32 command a large market share of BR24L32and are available in a range of capacities, bus interfaces (Microwire, I2C, SPI), operating voltages (1.8V to 5.5V, 2.5V to 5.5V) and package type...
BR24L16-W
The BR24L16-W series is 2-wire (I2 C BUS type) serial EEPROMs which are electrically programmable.

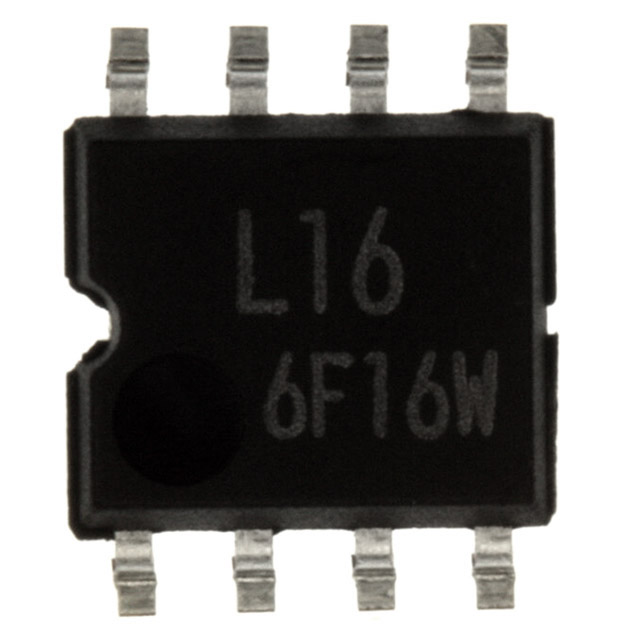

BR24L16F-WE2
