Part Number: BR62256F-70LL

MFG: ROHM

Package Cooled: SOP 28

D/C: 04+

Description: The BR62256F-70LL is a 32768 word ´ 8 bit asynchronous high-speed CMOS static RAM. It runs on a 5V single power s...

BR62256F-70LL General Description

The BR62256F-70LL is a 32768 word ´ 8 bit asynchronous high-speed CMOS static RAM. It runs on a 5V single power supply, and in addition to its low power consumption and high-speed, its low standby current enables its use in battery backup applications.

BR62256F-70LL Maximum Ratings

Parameter	Symbol	Limits	Unit
Applied voltage	V_CC	0.5^*1 ~ + 7.0	V
Power dissipation	P_d	850^*2	mW
Storage temperature	T_stg	55 ~ + 125	°C
Operating temperature	T_opr	0 ~ + 70	°C
I / O voltage	VI / O	0.5 ~ V_CC + 0.5	V
Input voltage	V_IN	0.5 ~ V_CC+ 0.5	V

*1 At pulse width of 50ns: 3.0V (min.)
*2 Reduced by 8.5mW for each increase in Ta of 1°C over 25°C.

BR62256F-70LL Features

· SRAM with a 32768 word ´ 8 bit configuration.
· High speed read access time of 70ns maximum (Ta = 0 to 70°C).
· Battery backup is possible.
Standby current: 50mA max. (Ta = 0 to 70°C)
Data holding current: 3mA max. (Ta = 0 to 70°C)
·5V single power supply voltage with ± 10% fluctuation tolerance.
· Input / output TTL compatible.
·Common input / output pin with three output statuses.
· No clock is necessary (asynchronous static circuit).
·Input and output data are in the same phase.
· Low power consumption.

BR62256F-70LL Typical Application

·General-purpose

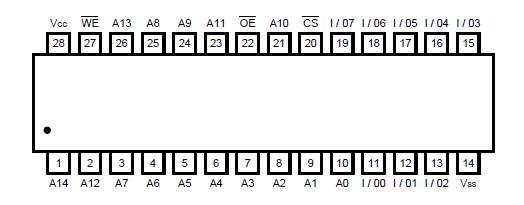

BR62256F-70LL Connection Diagram
