Purchase BR93LC46RF, In-stock BR93LC46RF From SeekIC.
MFG:BOHM Package Cooled:06+ D/C:20000
- Table of contents:
BR93LC46RF
-
Suppliers
DataSheet
General Description
BR93LC46RF Maximum Ratings
| Parameter | Symbol | Limits | Unit | |
| Applied voltage | VCC | 0.3 ~ + 6.5 | V | |
| Power dissipation |
BR93LC46 | Pd | 500*1 | mW |
| BR93LC46F / RF | 350*2 | |||
| BR93LC46FV | 300*3 | |||
| Storage temperature | Tstg | 65 ~ + 125 | ||
| Operating temperature | Topr | 40 ~ + 85 | ||
| Terminal voltage | - | 0.3 ~ VCC + 0.3 | V | |
*2 Reduced by 3.5mW for each increase in Ta of 1 over 25.
*3 Reduced by 3.0mW for each increase in Ta of 1 over 25.
BR93LC46RF Features
• Low power CMOS Technology
• 64 * 16bit configuration
• 2.7V to 5.5V operation
• Low power dissipation
3mA (max.) active current: 5V
5A (max.) standby current: 5V
• Auto increment for efficient data dump
• Automatic erase-before-write
• Hardware and software write protection
Default to write-disabled state at power up
Software instructions for write-enable / disable
Vcc lockout inadvertent write protection
• 8-pin SOP / 8-pin SSOP-B / 8-pin DIP packages
• Device status signal during write cycle
• TTL-compatible Input / Output
• 100,000 ERASE / write cycles
• 10 years Data Retention
• 64 * 16bit configuration
• 2.7V to 5.5V operation
• Low power dissipation
3mA (max.) active current: 5V
5A (max.) standby current: 5V
• Auto increment for efficient data dump
• Automatic erase-before-write
• Hardware and software write protection
Default to write-disabled state at power up
Software instructions for write-enable / disable
Vcc lockout inadvertent write protection
• 8-pin SOP / 8-pin SSOP-B / 8-pin DIP packages
• Device status signal during write cycle
• TTL-compatible Input / Output
• 100,000 ERASE / write cycles
• 10 years Data Retention

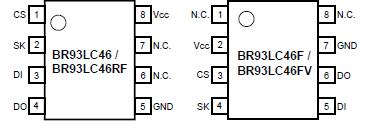

BR93LC46RF Connection Diagram
BR93LC46RF
