Part Number: BS62LV4001
Description: The BS62LV4001 is a high performance, low power CMOS Static Random Access Memory organized as 524,288 ...
- Table of contents:
BS62LV4001
-
Suppliers
DataSheet
General Description
BS62LV4001 General Description
The BS62LV4001 is a high performance, low power CMOS Static Random Access Memory organized as 524,288 words by 8 bits and operates from a wide range of 2.4V to 5.5V supply voltage. Advanced CMOS technology and circuit techniques provide both high speed and low power features with maximum access time of 70/ 100ns in 3.0V operation.
Easy memory expansion is provided by an active LOW chip enable (CE), and active LOW output enable (OE ) and three-state output drivers. The BS62LV4001 has an automatic power down feature, reducing the power consumption significantly when chip is deselected. The BS62LV4001 is available in DICE form, JEDEC standard 32 pin SOP, 32 pin TSOPII, 32 pin TSOP and 32 pin Small SOP.
BS62LV4001 Maximum Ratings
| SYMBOL | PARAMETER | RATING | UNITS |
| VTERM | Terminal Voltage with Respect to GND |
-0.5 to Vcc+0.5 |
V |
| TBIAS | Temperature Under Bias | -40 to +125 | |
| TSTG | Storage Temperature | -60 to +150 | |
| PT | Power Dissipation | 1.0 | mA |
| IOUT | DC Output Current | 20 | mA |
BS62LV4001 Features
• Wide Vcc operation voltage : 2.4V ~ 5.5V
• Low power consumption
Vcc = 3.0V C-grade: 20mA (Max.) operating current
I -grade: 25mA (Max.) operating current
0.25uA (Typ.) CMOS standby current
Vcc = 5.0V C-grade: 45mA (Max.) operation current
I -grade: 50mA (Max.) operating current
1.5uA (Typ.) CMOS standby current
• High speed access time :
-70 70ns (Max.) at Vcc = 3.0V
-10 100ns (Max.) at Vcc = 3.0V
• Automatic power down when chip is deselected
• Three state outputs and TTL compatible
• Fully static operation
• Data retention supply voltage as low as 1.5V
• Easy expansion with CEand OE options
• Low power consumption
Vcc = 3.0V C-grade: 20mA (Max.) operating current
I -grade: 25mA (Max.) operating current
0.25uA (Typ.) CMOS standby current
Vcc = 5.0V C-grade: 45mA (Max.) operation current
I -grade: 50mA (Max.) operating current
1.5uA (Typ.) CMOS standby current
• High speed access time :
-70 70ns (Max.) at Vcc = 3.0V
-10 100ns (Max.) at Vcc = 3.0V
• Automatic power down when chip is deselected
• Three state outputs and TTL compatible
• Fully static operation
• Data retention supply voltage as low as 1.5V
• Easy expansion with CEand OE options

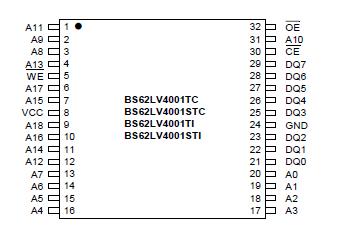

BS62LV4001 Connection Diagram
BS62LV4001SC
