Part Number: BS62LV4006

MFG: BSI

Package Cooled: TSOP

Description: The BS62LV4006 is a high performance, very low power CMOS Static ...

BS62LV4006 General Description

The BS62LV4006 is a high performance, very low power CMOS Static Random Access Memory organized as 524,288 words by 8 bits and operates from a wide range of 2.4V to 5.5V supply voltage.
Advanced CMOS technology and circuit techniques provide both high speed and low power features with a typical CMOS standby current of 0.45uA at 3.0V/25oCand maximum access time of 55ns at 3.0V/85oC.
Easy memory expansion is provided by an active LOW chip enable(CE) , and active LOW output enable (OE) and three-state output drivers.
The BS62LV4006 has an automatic power down feature, reducing the power consumption significantly when chip is deselected.
The BS62LV4006 is available in the JEDEC standard 32L SOP, TSOP, PDIP, TSOP II and STSOP package.

BS62LV4006 Features

* Wide Vcc operation voltage : 2.4V ~ 5.5V
* Very low power consumption :
       Vcc = 3.0V    C-grade: 29mA (@55ns) operating current
                           I -grade: 30mA (@55ns) operating current
                           C-grade: 24mA (@70ns) operating current
                           I -grade: 25mA (@70ns) operating current
                           0.45uA (Typ.) CMOS standby current
       Vcc = 5.0V    C-grade: 68mA (@55ns) operating current
                            I -grade: 70mA (@55ns) operating current
                            C-grade: 58mA (@70ns) operating current
                            I -grade: 60mA (@70ns) operating current
                            2.0uA (Typ.) CMOS standby current
* High speed access time :
      -55          55ns
      -70          70ns
* Automatic power down when chip is deselected
* Fully static operation
* Data retention supply voltage as low as 1.5V
* Easy expansion with CE and OE options
* Three state outputs and TTL compatible

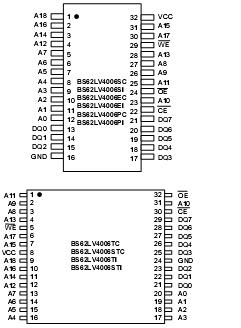

BS62LV4006 Connection Diagram

BS62LV4006 datasheet

BS62LV4006EC
PDF/DataSheet Download

Datasheet: BS62LV4006EC
File Size: 389152 KB
Manufacturer: BSI [Brilliance Semiconductor]
Click here to Download
