Position: Home  > All Categories> Integrated Circuits (ICs) > BSS225

BSS225

MOSFET N-CH 600V 90MA SOT-89

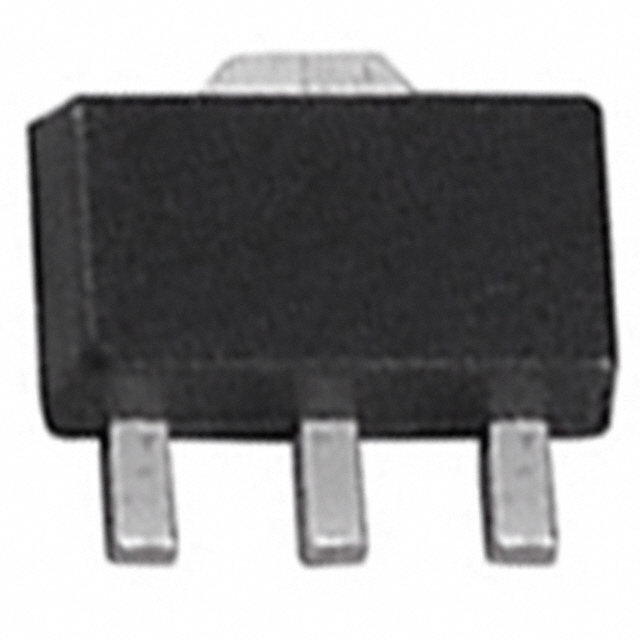

product image

BSS225 Picture
See larger image
SeekIC No. : 003430860 Detail

BSS225: MOSFET N-CH 600V 90MA SOT-89

BSS225 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BSS225
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: SIPMOS® Manufacturer: Infineon Technologies
FET Type: MOSFET N-Channel, Metal Oxide Transistor Type: -
Current - Collector (Ic) (Max): - FET Feature: Logic Level Gate
Continuous Drain Current : 15 A Drain to Source Voltage (Vdss): 600V
Voltage - Collector Emitter Breakdown (Max): - Current - Continuous Drain (Id) @ 25° C: 90mA
Vce Saturation (Max) @ Ib, Ic: - Current - Collector Cutoff (Max): -
Rds On (Max) @ Id, Vgs: 45 Ohm @ 90mA, 10V DC Current Gain (hFE) (Min) @ Ic, Vce: -
Vgs(th) (Max) @ Id: 2.3V @ 94µA Gate Charge (Qg) @ Vgs: 5.8nC @ 10V
Frequency - Transition: - Input Capacitance (Ciss) @ Vds: 131pF @ 25V
Power - Max: 1W Mounting Type: Surface Mount
Package / Case: TO-243AA Supplier Device Package: PG-SOT89-4

Description

FET Type: MOSFET N-Channel, Metal Oxide
Transistor Type: -
Current - Collector (Ic) (Max): -
FET Feature: Logic Level Gate
Voltage - Collector Emitter Breakdown (Max): -
Vce Saturation (Max) @ Ib, Ic: -
Current - Collector Cutoff (Max): -
DC Current Gain (hFE) (Min) @ Ic, Vce: -
Frequency - Transition: -
Mounting Type: Surface Mount
Power - Max: 1W
Packaging: Tape & Reel (TR)
Drain to Source Voltage (Vdss): 600V
Package / Case: TO-243AA
Current - Continuous Drain (Id) @ 25° C: 90mA
Gate Charge (Qg) @ Vgs: 5.8nC @ 10V
Series: SIPMOS®
Manufacturer: Infineon Technologies
Supplier Device Package: PG-SOT89-4
Vgs(th) (Max) @ Id: 2.3V @ 94µA
Rds On (Max) @ Id, Vgs: 45 Ohm @ 90mA, 10V
Input Capacitance (Ciss) @ Vds: 131pF @ 25V


Parameters:

Technical/Catalog InformationBSS225
VendorInfineon Technologies
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)600V
Current - Continuous Drain (Id) @ 25° C90mA
Rds On (Max) @ Id, Vgs45 Ohm @ 90mA, 10V
Input Capacitance (Ciss) @ Vds 131pF @ 25V
Power - Max1W
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs5.8nC @ 10V
Package / CaseSOT-89
FET FeatureLogic Level Gate
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names BSS225
BSS225
