BSS84DW

Features: · Low On-Resistance· Low Gate Threshold Voltage· Low Input Capacitance· Fast Switching SpeedPinout Specifications Characteristic Symbol BSS84DW Units Drain-Source Voltage VDSS -50 V Drain-Gate Voltage (Note 3) VDGR -50 V Gate-Source Voltage Continuous VGSS ±20 V...

product image

BSS84DW Picture
See larger image
SeekIC No. : 004302426 Detail

BSS84DW: Features: · Low On-Resistance· Low Gate Threshold Voltage· Low Input Capacitance· Fast Switching SpeedPinout Specifications Characteristic Symbol BSS84DW Units Drain-Source Voltage VDSS ...

BSS84DW Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BSS84DW
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low On-Resistance
· Low Gate Threshold Voltage
· Low Input Capacitance
· Fast Switching Speed

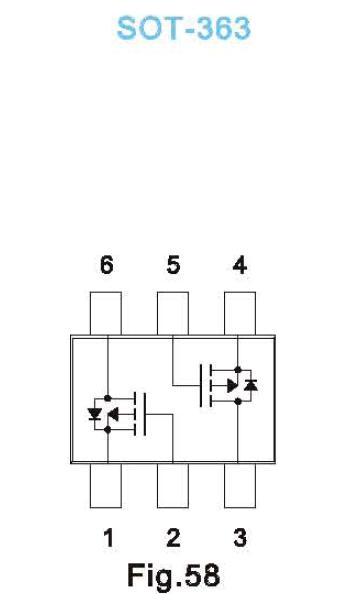

Pinout






Specifications

Characteristic Symbol BSS84DW Units
Drain-Source Voltage VDSS -50 V
Drain-Gate Voltage (Note 3) VDGR -50 V
Gate-Source Voltage Continuous VGSS ±20 V
Drain Current (Note 1) Continuous ID -130 mA
Total Power Dissipation (Note 1) Pd 200 mW
Thermal Resistance, Junction to Ambient RJA 625 /W
Operating and Storage Temperature Range Tj, TSTG -55 to +150

Note: 1. Valid provided that terminals are kept at specified ambient temperature.
2. Pulse width 300s, duty cycl  2%
3. RGS 20K.



Part Number BSS84DW
Config/
Polarity		 2 x P
PD
(W)		 0.3
VDSS
(V)		 -50
VGSS (+/-)
(V)		 20
ID
(A)		 -0.13
RDS(on) Max() @ VGS; -2.5V -
RDS(on) Max() @ VGS; 4.0V -
RDS(on) Max() @ VGS; -4.5V -
RDS(on) Max() @ VGS; -5V 10
RDS(on) Max() @ VGS; -10V -
VGS(th)
(V)		 -0.05(Min)
Ciss (typ)
(pF)		 45
Qg (typ) (nC)
@ VGS; 10V		 -
