BSS84W

Features: · Low On-Resistance· Low Gate Threshold Voltage· Low Input Capacitance· Fast Switching SpeedPinout Specifications Part Number BSS84W Config/ Polarity P PD(W) 0.2 VDSS(V) -50 VGSS (+/-)(V) 20 ID(A) -0.13 RDS(on) Max() @ VGS; -2.5V - RDS(on) Max() @ ...

product image

BSS84W Picture
See larger image
SeekIC No. : 004302429 Detail

BSS84W: Features: · Low On-Resistance· Low Gate Threshold Voltage· Low Input Capacitance· Fast Switching SpeedPinout Specifications Part Number BSS84W Config/ Polarity P PD(W) 0.2 VDSS(V...

BSS84W Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BSS84W
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low On-Resistance
· Low Gate Threshold Voltage
· Low Input Capacitance
· Fast Switching Speed

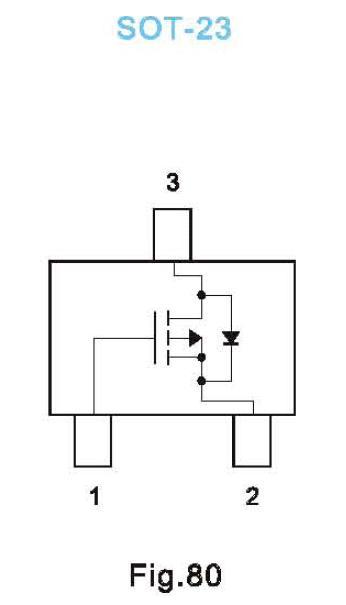

Pinout






Specifications

Part Number BSS84W
Config/
Polarity		 P
PD
(W)		 0.2
VDSS
(V)		 -50
VGSS (+/-)
(V)		 20
ID
(A)		 -0.13
RDS(on) Max() @ VGS; -2.5V -
RDS(on) Max() @ VGS; 4.0V -
RDS(on) Max() @ VGS; -4.5V -
RDS(on) Max() @ VGS; -5V 10
RDS(on) Max() @ VGS; -10V -
VGS(th)
(V)		 -2
Ciss (typ)
(pF)		 45(Max)
Qg (typ) (nC)
@ VGS; 10V		 -


Characteristic
Symbol
BSS84W
Units
Drain-Source Voltage
VDSS
-50
V
Drain-Gate Voltage (Note 3)
VDGR
-50
V
Gate-Source Voltage Continuous
VGSS
±20
V
Drain Current (Note 1) Continuous
ID
-130
mA
Total Power Dissipation (Note 1)
Pd
200
mW
Thermal Resistance, Junction to Ambient
RJA
625
°C/W
Operating and Storage Temperature Range
Tj, TSTG
-55 to +150
°C
