Part Number: BT136X









Description: Glasspassivated,sensitivegatetriacs in a full pack plastic envelope, intended for use in general purpose bidirectional ...


Urgent Purchase

BT136X General Description


Glasspassivated,sensitivegatetriacs in a full pack plastic envelope, intended for use in general purpose bidirectional switching and phase control applications. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.

BT136X Maximum Ratings

SYMBOL PARAMETER

CONDITIONS

MIN.

MAX.

UNIT

VDRM
IT(RMS)
ITSM
I2t
dIT/dt
IGM
VGM
PGM
PG(AV)
Tstg
Tj		 Repetitive peak off-state voltages
RMS on-state current
Non-repetitive peak
on-state current
I2t for fusing
Repetitive rate of rise of
on-state current after
triggering
Peak gate current
Peak gate voltage
Peak gate power
Average gate power
Storage temperature
Operating junction temperature		 full sine wave; Ths 92 °C
full sine wave; Tj = 25 °C prior to surge
t = 20 ms
t = 16.7 ms
t = 10 ms
ITM = 30 A; IG = 0.2 A;
dIG/dt = 0.2 A/ms
                              T2+ G+
                              T2+ G-
                              T2- G-
                              T2- G+
over any 20 ms period

-
-
-
-
-
-
-
-
-
-
-
-
-
-40
-

-500
5001

-600
6001

V
A
A
A
A2s
A/s
A/s
A/s
A/s
A
V
W
W

4
25
27
3.1
50
50
50
10
2
5
5
0.5
150
125

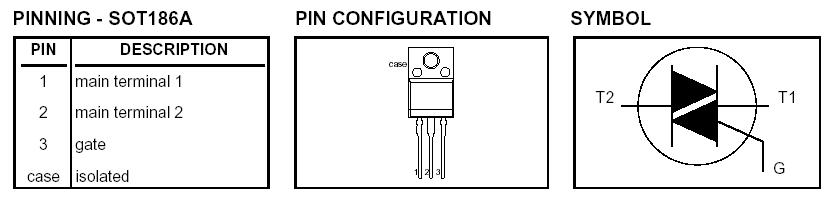

BT136X Connection Diagram

BT136X Connection Diagram
