Part Number: BT139F



MFG: PHILIPS

Package Cooled: TO-



Description: Glass passivated triacs in a full pack,plastic envelope, intended for use in appl...


Urgent Purchase

BT139F General Description


Glass passivated triacs in a full pack,plastic envelope, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typica applications include motor control, industrial and domestic lighting, heating and static switching.



BT139F Maximum Ratings

SYMBOL PARAMETER CONDITIONS   MIN. MAX. UNIT
VDRM Repetitive peak off-state
voltages
     - -500
5001
 -600
6001

 -800
800		 V
IT(RMS) RMS on-state current full sine wave; Ths  38 °C   - 16 A
ITSM Non-repetitive peak
on-state current
 full sine wave; Tj = 125 °C prior to surge; with reapplied VDRM(max)
    t = 20 ms
t = 16.7 ms
-
-		 140
150		 A
A
I2t I2t for fusing t = 10 ms   - 98 A2s
dIT/dt Repetitive rate of rise of
on-state current after triggering
 ITM = 20 A; IG = 0.2 A;
dIG/dt = 0.2 A/s






T2+ G+
T2+ G-
T2- G-
T2- G+

 -
-
-
-		 50
50
50
10		 A/s
A/s
A/s
A/s
IGM Peak gate current     - 2 A
VGM Peak gate voltage     - 5 V
PGM Peak gate power over any 20 ms period   - 5 W
PG(AV) Average gate power     - 0.5 W
Tstg Storage temperature     -40 150 °C
Tj Operating junction temperature     - 125 °C

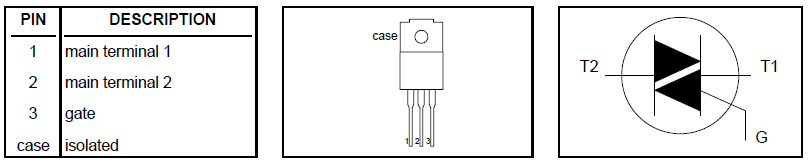

BT139F Connection Diagram

BT139F Connection Diagram

BT139F datasheet

BT139F-500
PDF/DataSheet Download

  • Datasheet: BT139F-500
  • File Size: 52997 KB
  • Manufacturer: PHILIPS [Philips Semiconductors]
  • Click here to Download
