BTA208-600F

Breakover Current IBO Max :
On-State RMS Current (It RMS) :
Rated Repetitive Off-State Voltage VDRM : 600 V
Mounting Style : Through Hole
Package / Case : TO-220AB
Gate Trigger Voltage (Vgt) : 1.5 V
Off-State Leakage Current @ VDRM IDRM : 0.5 mA
Gate Trigger Current (Igt) : 25 mA
Holding Current (Ih Max) : 30 mA
Packaging : Rail

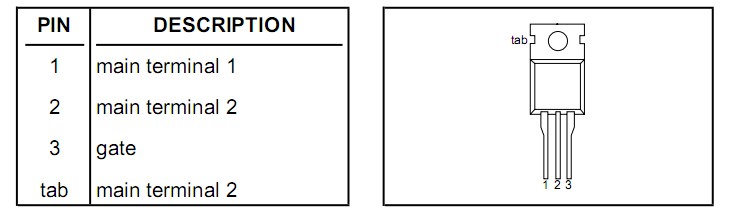

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.		UNIT
VDRM	Repetitive peak off-state voltages		-	-600 600	-800 800	V
IT(RMS)	RMS on-state current	full sine wave;Tmb 102 ˚C	-	8		A
ITSM	Non-repetitive peak on-state current	full sine wave; Tj = 25 ˚C prior to surge t = 20 ms t = 16.7 ms	- -	65 72		A A
I2t	I2t for fusing	t = 10 ms	-	21		A2s
dIT/dt	Repetitive rate of rise of on-state current after triggering	ITM = 12A; IG = 0.2 A; dIG/dt =0.2 A/µs	-	100		A/µs
IGM	Peak gate current	over any 20 ms period	-	2		A
PGM	Peak gate power		-	5		W
PG(AV)	Average gate power		-	0.5		W
Tstg	Storage temperature		-40	150		˚C
Tj	Operating junction temperature		-	125		˚C

Description

Passivated guaranteed commutation triacs BTA208-600F in a plastic envelope intended for use in motor control circuits or with other highly inductive loads. BTA208-600F balance the requirements of commutation performance and gate sensitivity. The "sensitive gate" E series and "logic level" D series are intended for interfacing with low power drivers, including micro controllers.
