Product Details

Description

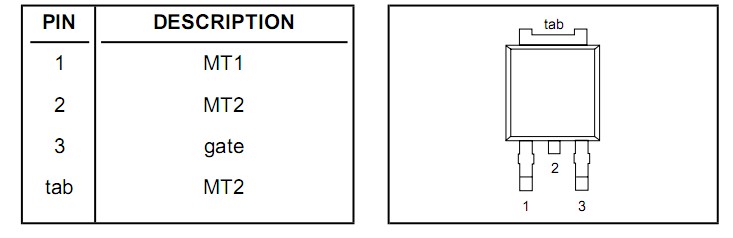

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.		UNIT
V_DRM	Repetitive peak off-state voltages		-	-600 600	-800 800	V
I_T(RMS)	RMS on-state current	full sine wave;T_mb 102 ˚C	-	8		A
I_TSM	Non-repetitive peak on-state current	full sine wave; T_j= 25 ˚C prior to surge t = 20 ms t = 16.7 ms	- -	65 72		A A
I²t	I²t for fusing	t = 10 ms	-	21		A²s
dI_T/dt	Repetitive rate of rise of on-state current after triggering	I_TM = 12 A; I_G = 0.2 A; dI_G/dt =0.2 A/µs	-	100		A/µs
I_GM	Peak gate current	over any 20 ms period	-	2		A
P_GM	Peak gate power		-	5		W
P_G(AV)	Average gate power		-	0.5		W
T_stg	Storage temperature		-40	150		˚C
T_j	Operating junction temperature		-	125		˚C

Description

Passivated guaranteed commutation triacs BTA208S-600D in a plastic envelope suitable for surface mounting, intended for use in motor control circuits or with other highly inductive loads. BTA208S-600D balance the requirements of commutation performance and gate sensitivity. The "sensitive gate" E series and "logic level" D series are intended for interfacing with low power drivers, including micro controllers.
