Part Number: BTS140A











Urgent Purchase

BTS140A Maximum Ratings

Parameter Symbol Values Unit
Drain-source voltage VDS 50 V
Drain-gate voltage, RGS = 20 k VDGR 50
Gate-source peak voltage, aperiodic VgS ± 20
Continuous drain current, TC = 65 °C ID 42 A
ISO drain current
TC = 85 °C, VGS = 10 V, VDS = 0.5 V		 ID-ISO 13.5
Pulsed drain current, TC = 25 °C ID puls 168
Short circuit current, Tj = 55 ... + 150 °C ISC 80
Short circuit dissipation, Tj = 55 ... + 150 °C PSCmax 1200 W
Power dissipation Ptot 125
Operating and storage temperature range Tj, Tstg 55 ... + 150 °C
DIN humidity category, DIN 40 040 E
IEC climatic category, DIN IEC 68-1 55/150/56
Thermal resistance
Chip-case
Chip-ambient		 Rth JC
Rth JA		 1.0
75		 K/W

BTS140A Features

N channel
Enhancement mode
Temperature sensor with thyristor characteristic
The drain pin is electrically shorted to the tab

BTS140A datasheet

BTS140A
PDF/DataSheet Download

  • Datasheet: BTS140A
  • File Size: 323473 KB
  • Manufacturer: INFINEON [Infineon Technologies AG]
  • Click here to Download

Find BTS140A Suppliers

  • ·BTS100
  • SIEMENS [Siemens Semiconductor Group]
  • Smart Highside Power Switch TEMPFET (P channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 447180 KB
  • BTS100 Datasheet Download
  • ·BTS110
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 574041 KB
  • BTS110 Datasheet Download
  • ·BTS112
  • SIEMENS [Siemens Semiconductor Group]
  • TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 327460 KB
  • BTS112 Datasheet Download
  • ·BTS112A
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 593185 KB
  • BTS112A Datasheet Download
  • ·BTS113
  • SIEMENS [Siemens Semiconductor Group]
  • TEMPFET (N channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
  • 316535 KB
  • BTS113 Datasheet Download
  • ·BTS113A
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N-channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
  • 561964 KB
  • BTS113A Datasheet Download
  • ·BTS114
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 589015 KB
  • BTS114 Datasheet Download
  • ·BTS114A
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 589015 KB
  • BTS114A Datasheet Download

Related Part Number

BTS140A Relative Products

  • BTS134D

    BTS134D

    IC PWR SWITCH 42V 3.5A TO252

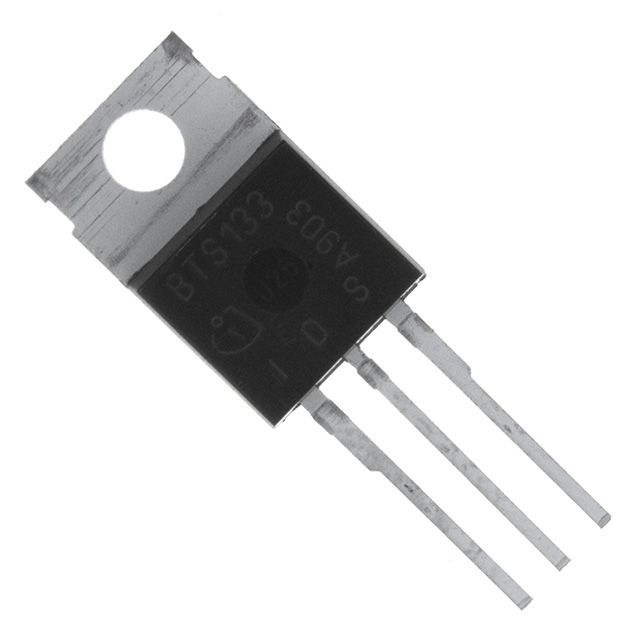

  • BTS133
