Part Number: BTS149
MFG: INFINON
D/C: 05+
Description: N channel vertical power FET in Smart SIPMOS® chip on chip technology. Fully protected by embedded prote...
- Table of contents:
BTS149
-
Suppliers
DataSheet
General Description
BTS149 General Description
N channel vertical power FET in Smart SIPMOS® chip on chip technology. Fully protected by embedded protected functions.
BTS149 Maximum Ratings
| Parameter | Symbol |
Value |
Unit |
| Drain source voltage | VDS |
60 |
V |
| Drain source voltage for short circuit protection | VDS(SC) |
32 | |
| Continuous input current -0.2V VIN 10V VIN < -0.2V or VIN > 10V |
IIN |
no limit | IIN | 2 |
mA |
| Operating temperature | Tj |
- 40 ... +150 |
°C |
| Storage temperature | Tstg |
- 55 ... +150 | |
| Power dissipation TC = 25 °C |
Ptot |
178 |
W |
| Unclamped single pulse inductive energy ID(ISO) = 19 A |
EAS |
6000 |
mJ |
| Electrostatic discharge voltage (Human Body Model) according to MIL STD 883D, method 3015.7 and EOS/ESD assn. standard S5.1 - 1993 |
VESD |
3000 |
V |
| Load dump protection VLoadDump2) = VA + VS VIN=low or high; VA=13.5 V td = 400 ms, RI = 2 , ID=0,5*19A td = 400 ms, RI = 2 , ID= 19A |
VLD |
110 |
V |
| DIN humidity category, DIN 40 040 |
E |
||
| IEC climatic category; DIN IEC 68-1 |
40/150/56 |
BTS149 Features
• Logic Level Input
• Input Protection (ESD)
• Thermal shutdown with latch
• Overload protection
• Short circuit protection
• Overvoltage protection
• Current limitation
• Status feedback with external input resistor
• Analog driving possible
• Input Protection (ESD)
• Thermal shutdown with latch
• Overload protection
• Short circuit protection
• Overvoltage protection
• Current limitation
• Status feedback with external input resistor
• Analog driving possible
BTS149 Typical Application
• All kinds of resistive, inductive and capacitive loads in switching or linear applications
• C compatible power switch for 12 V and 24 V DC applications
• Replaces electromechanical relays and discrete circuits
• C compatible power switch for 12 V and 24 V DC applications
• Replaces electromechanical relays and discrete circuits
BTS149
PDF/DataSheet Download
- Datasheet: BTS149
- File Size: 316837 KB
- Manufacturer: INFINEON [Infineon Technologies AG]
- Click here to Download
- ·BTS100
- SIEMENS [Siemens Semiconductor Group]
- Smart Highside Power Switch TEMPFET (P channel Enhancement mode Temperature sensor with thyristor characteristic)
- 447180 KB
- ·BTS110
- INFINEON [Infineon Technologies AG]
- TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
- 574041 KB
- ·BTS112
- SIEMENS [Siemens Semiconductor Group]
- TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)
- 327460 KB
- ·BTS112A
- INFINEON [Infineon Technologies AG]
- TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
- 593185 KB
- ·BTS113
- SIEMENS [Siemens Semiconductor Group]
- TEMPFET (N channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
- 316535 KB
- ·BTS113A
- INFINEON [Infineon Technologies AG]
- TEMPFET(N-channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
- 561964 KB
- ·BTS114
- INFINEON [Infineon Technologies AG]
- TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
- 589015 KB
- ·BTS114A
- INFINEON [Infineon Technologies AG]
- TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
- 589015 KB
BTS149 Relative Products
BTS142D
N channel vertical power FET BTS142D in Smart SIPMOS® technology. Fully protected by embedded protection functions.
BTS141

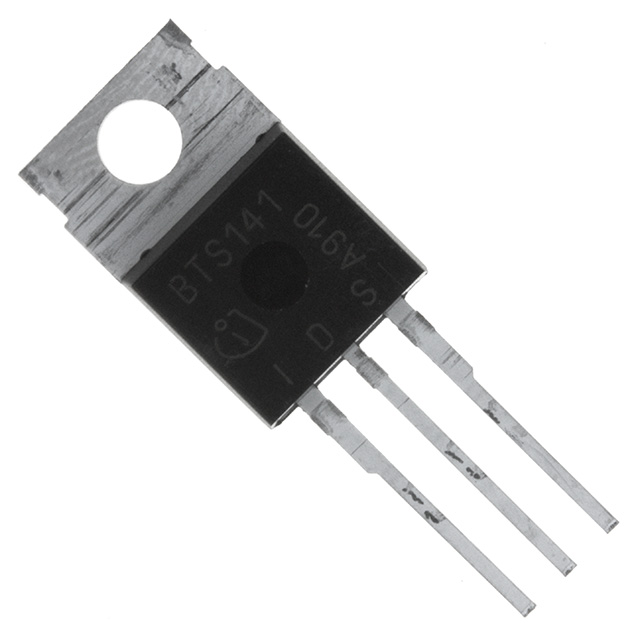

MOSFET N-CH 60V 12A TO-220
