BTS282Z

Power Switch ICs - POE / LAN N-Channel 49V SPEED TEMPFET

product image

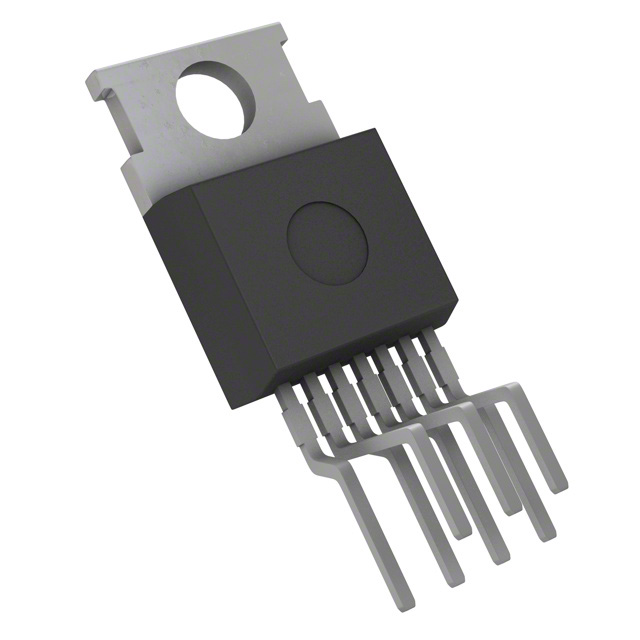

BTS282Z Picture
See larger image
SeekIC No. : 00629031 Detail

BTS282Z: Power Switch ICs - POE / LAN N-Channel 49V SPEED TEMPFET

BTS282Z Data Sheet

floor Price/Ceiling Price

US $ 1.31~1.91 / Piece | Get Latest Price
Part Number:
BTS282Z
Mfg:
Infineon Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 0~245
  • 245~250
  • 250~500
  • 500~1000
  • Unit Price
  • $1.91
  • $1.72
  • $1.55
  • $1.31
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Maximum Operating Temperature : + 175 C Mounting Style : Through Hole
Package / Case : TO-220AB

Description

Number of Switches :
Switch Configuration :
On Resistance (Max) :
Crosstalk :
Bandwidth :
On Time (Max) :
Off Time (Max) :
Switch Voltage (Max) :
Operating Supply Voltage :
Mounting Style : Through Hole
Maximum Operating Temperature : + 175 C
Package / Case : TO-220AB


Features:

 N-Channel
 Enhancement mode
 Logic Level Input
 Analog driving possible
 Fast switching up to 1 MHz
 Potential-free temperature sensor with thyristor characteristics
 Overtemperature protection
 Avalanche rated
 High current pinning


Specifications

Parameter Symbol
Value
 Unit
Drain source voltage VDS
49
 V
Drain-gate voltage, RGS = 20 k VDGR
49
Gate source voltage VGS
±20
Nominal load current (ISO 10483)
VGS = 4.5 V, VDS 0.5 V, TC = 85 °C
VGS = 10 V, VDS 0.5 V, TC = 85 °C		 ID(ISO)
36
52
A
Continuous drain current 1)
TC = 100 °C, VGS = 4.5V		 ID
80
Pulsed drain current ID puls
320
Avalanche energy, single pulse
ID = 36 A, RGS = 25 		EAS
2
 J
Power dissipation
TC = 25 °C		 Ptot
300
 W
Operating temperature 2) Tj
-40 ...+175
 °C
Peak temperature ( single event ) Tjpeak
200
Storage temperature Tstg
-55 ... +150
DIN humidity category, DIN 40 040
E

IEC climatic category; DIN IEC 68-1
40/150/56




Parameters:

Technical/Catalog InformationBTS282Z
VendorInfineon Technologies
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)49V
Current - Continuous Drain (Id) @ 25° C80A
Rds On (Max) @ Id, Vgs6.5 mOhm @ 36A, 10V
Input Capacitance (Ciss) @ Vds 4800pF @ 25V
Power - Max300W
PackagingTube
Gate Charge (Qg) @ Vgs232nC @ 10V
Package / CaseTO-220-7
FET FeatureLogic Level Gate
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names BTS282Z
BTS282Z
