Part Number: BTS410H2









Description: N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolit...


Urgent Purchase

BTS410H2 General Description


N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology. Fully protected by embedded protection functions.

BTS410H2 Maximum Ratings

Parameter Symbol Values Unit
Supply voltage (overvoltage protection see page 3) Vbb
65
V
Load dump protection2) VLoadDump = UA + Vs, UA = 13.5 V
RI= 0.5, RL= 6.6, td= 400 ms, IN= low or high		 VLoaddump4)
100
V
Load current (Short-circuit current, see page 4) IL
self-limited
A
Operating temperature range
Storage temperature range		 Tj
Tstg
-40 ...+150
-55 ...+150
°C
Power dissipation (DC),TC25 Ptot
50
W
Inductive load switch-off energy dissipation, single pulse
Vbb =12V, Tj,start =150°C, TC = 150°C const.
                     IL = 1.8 A, ZL = 2.3 H, 0 :		 EAS 4.5 J
Electrostatic discharge capability (ESD)       IN:
(Human Body Model)                 all other pins:
acc. MIL-STD883D, method 3015.7 and ESD assn. std. S5.1-1993		 VESD
1
2
kV
Input voltage (DC)
Current through input pin (DC)
Current through status pin (DC)
see internal circuit diagrams page 6		 VIN
IIN
IST
-0.5 ... +6
±5.0
±5.0
V
mA

BTS410H2 Features

· Overload protection
· Current limitation
· Short circuit protection
· Thermal shutdown
· Overvoltage protection (including load dump)
· Fast demagnetization of inductive loads
· Reverse battery protection1)
· Undervoltage and overvoltage shutdown with auto-restart and hysteresis
· Open drain diagnostic output
· Open load detection in OFF-state
· CMOS compatible input
· Loss of ground and loss of Vbb protection
· Electrostatic discharge (ESD) protection

BTS410H2 Typical Application

` µC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads
` Most suitable for inductive loads
` Replaces electromechanical relays, fuses and discrete circuits

BTS410H2 datasheet

BTS410H2
PDF/DataSheet Download

  • Datasheet: BTS410H2
  • File Size: 171864 KB
  • Manufacturer: SIEMENS [Siemens Semiconductor Group]
  • Click here to Download

Find BTS410H2 Suppliers

  • ·BTS100
  • SIEMENS [Siemens Semiconductor Group]
  • Smart Highside Power Switch TEMPFET (P channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 447180 KB
  • BTS100 Datasheet Download
  • ·BTS110
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 574041 KB
  • BTS110 Datasheet Download
  • ·BTS112
  • SIEMENS [Siemens Semiconductor Group]
  • TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 327460 KB
  • BTS112 Datasheet Download
  • ·BTS112A
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 593185 KB
  • BTS112A Datasheet Download
  • ·BTS113
  • SIEMENS [Siemens Semiconductor Group]
  • TEMPFET (N channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
  • 316535 KB
  • BTS113 Datasheet Download
  • ·BTS113A
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N-channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
  • 561964 KB
  • BTS113A Datasheet Download
  • ·BTS114
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 589015 KB
  • BTS114 Datasheet Download
  • ·BTS114A
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 589015 KB
  • BTS114A Datasheet Download

Related Part Number

BTS410H2 Relative Products

  • BTS410G2

    BTS410G2

    N channel vertical power FET BTS410G2 with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology. Fully protected by embedded protection functions.

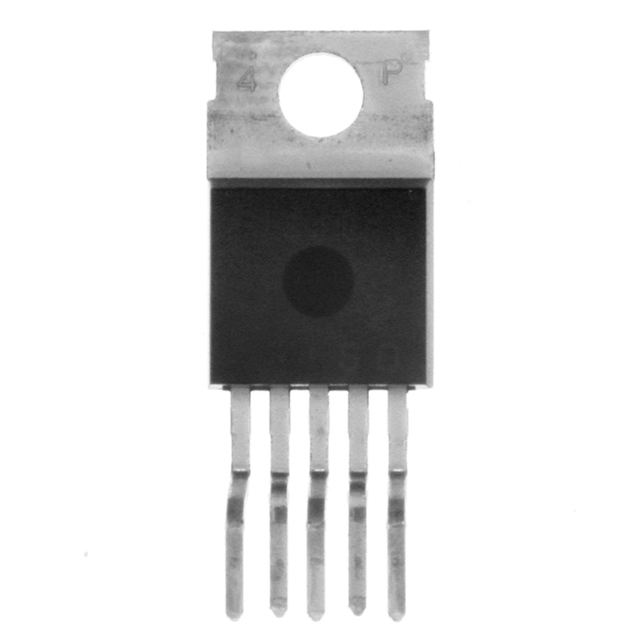

  • BTS410F2
