Part Number: BTS428L2



MFG: 100

Package Cooled: Infineon



Description: •N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedbac...


Urgent Purchase

BTS428L2 General Description


•N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology.
•Providing embedded protective functions

BTS428L2 Maximum Ratings

Parameter
Symbol
Values
Unit
Supply voltage (overvoltage protection see page 4) Vbb
43
V
Supply voltage for full short circuit protection
Tj Start=-40 ...+150°C
Vbb
24
V
Load dump protection1) VLoadDump = VA + Vs, VA = 13.5 V
RI2)= 2 Ω, R = 4.0 Ω, t = 200 ms, IN= low or high

VLoad dump3)
60
V
Load current (Current limit, see page 5) IL
self-limited
A
Operating temperature range
Storage temperature range


Tj
Tstg
-40 ...+150
-55 ...+150
°C
Power dissipation (DC), TC 25 °C Ptot
75
W
Maximal switchable inductance, single pulse
Vbb = 12V, T j,start = 150°C, TC = 150°C const.
(See diagram on page 9) IL(ISO) = 7 A, RL = 0 Ω; E4)AS=0.19J:


ZL
5.6
mH
Electrostatic discharge capability                                 (ESD) IN:
                                                            (Human Body Model) ST:
                                                     out to all other pins shorted:
acc. MIL-STD883D, method 3015.7 and
ESD assn. std. S5.1-1993; R=1.5kΩ; C=100pF

VESD




1.0
4.0
8.0
kV





Input voltage (DC)
Current through input pin (DC)
Current through status pin (DC)
see internal circuit diagrams page 8

 IIN
IST


-10 ... +16
±2.0
±5.0
V
mA


BTS428L2 Typical Application

•µC compatible high-side power switch with diagnostic feedback for 5V, 12V and 24V grounded loads
•All types of resistive, inductive and capacitve loads
•Most suitable for loads with high inrush currents, so as lamps
•Replaces electromechanical relays, fuses and discrete circuits

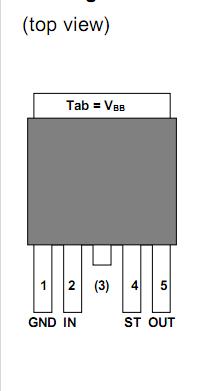

BTS428L2 Connection Diagram

BTS428L2 Connection Diagram
