Five Points

Part Number: BTS5240L









Description: • N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedba...


Urgent Purchase

BTS5240L General Description


• N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology.
• Providing embedded protective functions.
• Extern adjustable current limitation.

BTS5240L Maximum Ratings

Parameter

Symbol

Value

Unit

Supply voltage (overvoltage protection see page 6) Vbb

281)

V

Supply voltage for full short circuit protection; Tj =-40 ...+150°C Vbb(SC)

282)

Maximum voltage across DMOS VON

52

Load dump protection3) VLoadDump4) = VA + VS; VA = 13,5 V
In = low or high; td = 400 ms; RI4) = 2
RL = 2.25
RL = 6.8 		VLoaddump

40
53

Load current (Short - circuit current, see page 7) IL

IL(lim)5)

A

Operating temperature range Tj

-40...+150

°C

Storage temperature range Tstg

-55...+150

Dynamical temperature rise at switching dT

60

K

Power dissipation6) (DC), one channel active     TA = 85 °C Ptot

1,4

W

Maximal switchable inductance, single pulse
Vbb=12V, Tjstart=150°C;         (see diagrams on page 12)
IL = 6 A, EAS = 0.319 J, RL = 0 ,                 one channel:
IL = 12 A, EAS = 0.679 J, RL = 0 ,      two parallel channels:		 ZL(s)

9.8
5.2

mH

Electrostatic discharge voltage                              IN:
(Human Body Model)                                           IS:
according to ANSI EOS/ESD - S5.1 - 1993 , ESD STM5.1 - 1998 OUT:		 VESD

1.0
2.0
4.0

kV

Continuous input voltage VIN

-10...16

V

Voltage at current limit adjustment pin VCLA

-10...16

Current limit adjustment current ICLA

±5.0

mA

Current through input pin (DC) IIN

±5.0

Current through sense (DC)    (see page 11) IIS

-5...10

BTS5240L Typical Application

• All types of resistive, inductive and capacitive loads
• C compatible high-side power switch with diagnostic feedback for 12 V grounded loads
• Due to the adjustable current limitation best suitable for loads with high inrush currents, so as lamps
• Replaces electromechanical relays, fuses and discrete circuits

BTS5240L Connection Diagram

BTS5240L Connection Diagram

BTS5240L datasheet

BTS5240L
PDF/DataSheet Download

  • Datasheet: BTS5240L
  • File Size: 486736 KB
  • Manufacturer: INFINEON [Infineon Technologies AG]
  • Click here to Download

Find BTS5240L Suppliers

  • ·BTS100
  • SIEMENS [Siemens Semiconductor Group]
  • Smart Highside Power Switch TEMPFET (P channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 447180 KB
  • BTS100 Datasheet Download
  • ·BTS110
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 574041 KB
  • BTS110 Datasheet Download
  • ·BTS112
  • SIEMENS [Siemens Semiconductor Group]
  • TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 327460 KB
  • BTS112 Datasheet Download
  • ·BTS112A
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 593185 KB
  • BTS112A Datasheet Download
  • ·BTS113
  • SIEMENS [Siemens Semiconductor Group]
  • TEMPFET (N channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
  • 316535 KB
  • BTS113 Datasheet Download
  • ·BTS113A
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N-channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
  • 561964 KB
  • BTS113A Datasheet Download
  • ·BTS114
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 589015 KB
  • BTS114 Datasheet Download
  • ·BTS114A
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 589015 KB
  • BTS114A Datasheet Download

Related Part Number

BTS5240L Relative Products

  • BTS5240G

    BTS5240G

    General description of the BTS5240G are:(1)N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology;(2)providing embedded protective functions;(3)e...

  • BTS5236-2GS

    BTS5236-2GS

    The BTS5236-2GS is designed as one kind of smart high-side power switch. The general description of this device are:(1)N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrate...

  • BTS5236-2EKA

    BTS5236-2EKA

    IC SWITCH PWR HISIDE DSO-14

  • BTS5235-2L

    BTS5235-2L

    IC PWR SWITCH HISIDE PG-DSO-12-9

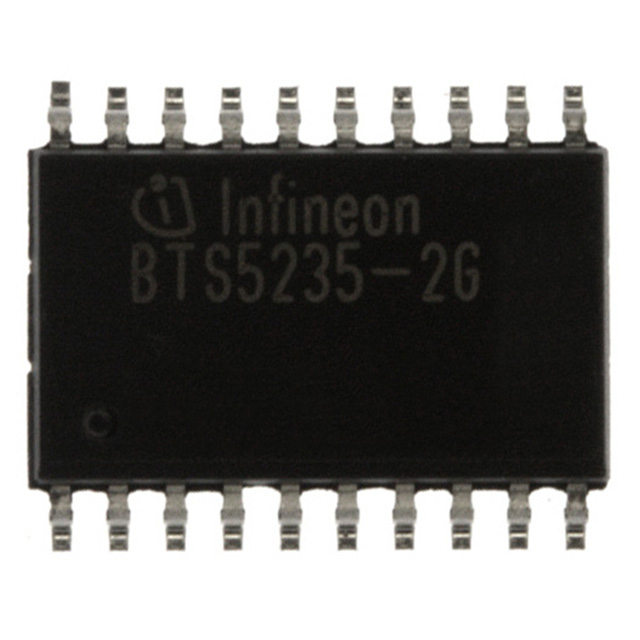

  • BTS5235-2G
