DataSheet
General Description
BTS550P Maximum Ratings
| Parameter | Symbol | Values | Unit |
| Supply voltage (overvoltage protection see page 4) | Vbb | 40 | V |
| Supply voltage for short circuit protection, Tj,start =-40 ...+150°C: (EAS limitation see diagram on page 9) |
Vbb | 34 | V |
| Load current (short circuit current, see page 5) | IL | self-limited | A |
| Load dump protection VLoadDump = UA + Vs, UA = 13.5 V RI5) = 2 Ω, RL = 0.54 Ω, td = 200 ms, IN, IS = open or grounded |
VLoaddump6) | 80 | V |
| Operating temperature range Storage temperature range |
Tj Tstg |
-40 ...+150 -55 ...+150 |
°C |
| Power dissipation (DC), TC 25 °C | Ptot | 360 | W |
| Inductive load switch-off energy dissipation, single pulse Vbb = 12V, Tj,start = 150°C, TC = 150°C const., IL = 20 A, ZL = 15 mH, 0 Ω, see diagrams on page 10 |
EAS | 3 | J |
| Electrostatic discharge capability (ESD) Human Body Model acc. MIL-STD883D, method 3015.7 and ESD assn. std. S5.1-1993, C = 100 pF, R = 1.5 kΩ |
VESD | 4k | V |
| Current through input pin (DC) Current through current sense status pin (DC) see internal circuit diagrams on page 8 |
IIN IIS |
+15 , -250 +15 , -250 |
mA |
BTS550P Features
• Overload protection
• Current limitation
• Short circuit protection
• Overtemperature protection
• Overvoltage protection (including load dump)
• Clamp of negative voltage at output
• Fast deenergizing of inductive loads 1)
• Low ohmic inverse current operation
• Diagnostic feedback with load current sense
• Open load detection via current sense
• Loss of Vbb protection2)
• Electrostatic discharge (ESD) protection
• Current limitation
• Short circuit protection
• Overtemperature protection
• Overvoltage protection (including load dump)
• Clamp of negative voltage at output
• Fast deenergizing of inductive loads 1)
• Low ohmic inverse current operation
• Diagnostic feedback with load current sense
• Open load detection via current sense
• Loss of Vbb protection2)
• Electrostatic discharge (ESD) protection
BTS550P Typical Application
• Power switch with current sense diagnostic
feedback for 12 V and 24 V DC grounded loads
• Most suitable for loads with high inrush current
like lamps and motors; all types of resistive and
inductive loads
• Replaces electromechanical relays, fuses and discrete circuits
feedback for 12 V and 24 V DC grounded loads
• Most suitable for loads with high inrush current
like lamps and motors; all types of resistive and
inductive loads
• Replaces electromechanical relays, fuses and discrete circuits
BTS550P
PDF/DataSheet Download
- Datasheet: BTS550P
- File Size: 285823 KB
- Manufacturer: INFINEON [Infineon Technologies AG]
- Click here to Download
- ·BTS100
- SIEMENS [Siemens Semiconductor Group]
- Smart Highside Power Switch TEMPFET (P channel Enhancement mode Temperature sensor with thyristor characteristic)
- 447180 KB
- ·BTS110
- INFINEON [Infineon Technologies AG]
- TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
- 574041 KB
- ·BTS112
- SIEMENS [Siemens Semiconductor Group]
- TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)
- 327460 KB
- ·BTS112A
- INFINEON [Infineon Technologies AG]
- TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
- 593185 KB
- ·BTS113
- SIEMENS [Siemens Semiconductor Group]
- TEMPFET (N channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
- 316535 KB
- ·BTS113A
- INFINEON [Infineon Technologies AG]
- TEMPFET(N-channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
- 561964 KB
- ·BTS114
- INFINEON [Infineon Technologies AG]
- TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
- 589015 KB
- ·BTS114A
- INFINEON [Infineon Technologies AG]
- TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
- 589015 KB
BTS550P Relative Products
BTS5441G
IC HIGH SIDE PWR SWITCH PDSO-28
BTS5440G
The BTS5440G features are as follows:• N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology.• Providing embedded protective fu...
BTS5434G
IC HIGH SIDE PWR SWITCH PDSO-28
BTS542D2
N channel vertical power FET BTS542D2 with charge pump, ground referenced CMOS compatible input and diagnostic feedback, integrated in Smart SIPMOSâ chip on chip technology. Fully protected by embedded protection functions.

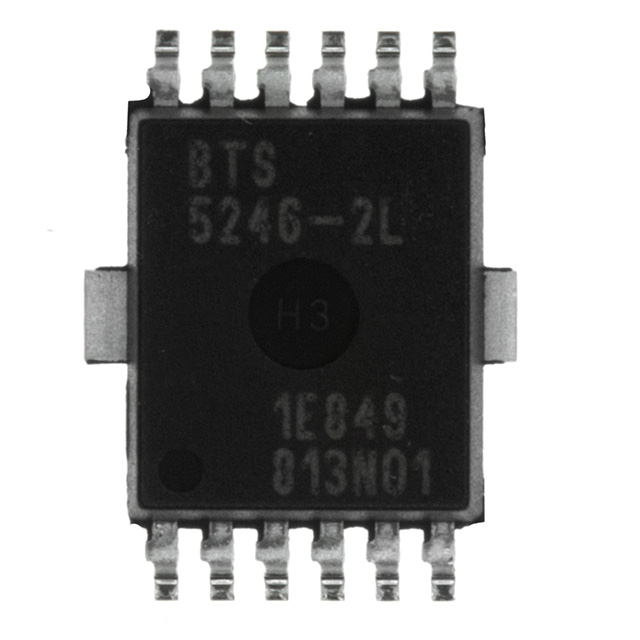

BTS5246-2L
