Part Number: BU2385KN



MFG: ROHM

Package Cooled: QFN

D/C: 06+

Description: BU2385KN is a clock generator IC that can generate multiple frequencies (clocks) from one oscillator. Excellent jitter ...


Urgent Purchase

BU2385KN General Description


BU2385KN is a clock generator IC that can generate multiple frequencies (clocks) from one oscillator. Excellent jitter characteristic is achieved through the built-in high-performance 3-channel PLL. High-quality sound and image equivalent to the oscillating module are the result of this feature. Clocks can be easily changed for other applications. The internal dividing control allows the frequency to be switched outside.

BU2385KN Maximum Ratings

Parameter Symbol Limits Unit
Applied voltage VDD 0.5 ~ + 7.0 V
Input voltage VIN 0.5 ~ VDD + 0.5 V
Power dissipation Pd 30 ~ + 125 °C
Storage temperature range Tstg 530 mW

* An operation is not guaranteed.
* In case it is used at Ta=25 C or more, 5.3mW is reduced at every 1 C.
* Radiation resistance design is not used.
* Power dissipation is measured when BU2385KN is placed in the board.

BU2385KN Features

1) Multiple frequency clock signals can be generated by the built-in 3-channel PLL through connecting crystal oscillator.
2) QFN20V package
3) 3.3V single power supply
4) For crystal 14.318182MHz * 28.636363MHz
5) No need additional components.
    (BU2385KN have PLL loop filter in side).

BU2385KN Typical Application

Digital still camera

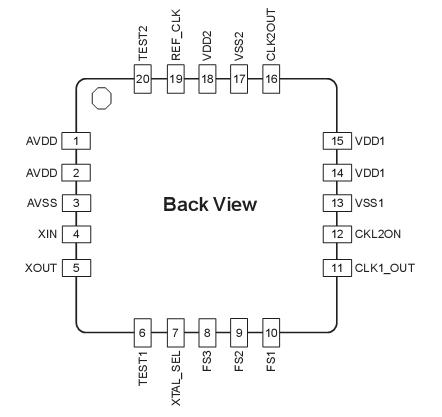

BU2385KN Connection Diagram

BU2385KN Connection Diagram

BU2385KN datasheet

BU2385KN
PDF/DataSheet Download
