BU2525DX General Description


New generation, high-voltage, high-speed switching npn transistor with integrated damper diode in a plastic full-pack envelope intended for use in horizontal deflection circuits of large screen colour television receivers up to 32 kHz.

BU2525DX Maximum Ratings

SYMBOL PARAMETER CONDTIONS
MIN.
MAX.
UNIT

VCESM
VCEO
IC
ICM
IB
IBM
-IB(AV)
IBM
Ptot
Tstg
Tj

 Collector to emitter voltage
Collector to emitter voltage (open base)
Collector current (DC)
Collector current peak value
Base current (DC)
Base current peak value
Reverse base current
Reverse base current peak value1
Total power dissipation
Storage temperature
Junction temperature		 VBE=0V
average over any 20 ms period
Ths25
-
-
-
-
-
-
-
-
-
-65
-
1500
800
12
30
8
12
200
9
45
150
150
V
V
A
A
A
A
mA
A
W

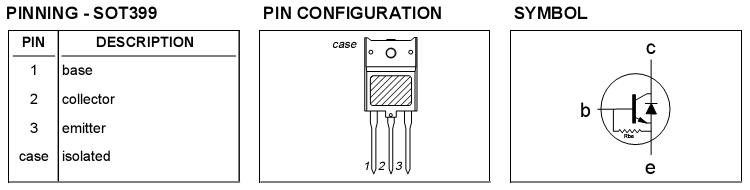

BU2525DX Connection Diagram

BU2525DX Connection Diagram

BU2525DX datasheet

BU2525DX
PDF/DataSheet Download
