Part Number: BU2532AW



MFG: PHILIPS

Package Cooled: TO3P

D/C: 00+

Description: New generation, high-voltage, high-speed switching npn transistor in a plastic envelope intended for use in horizontal ...


Urgent Purchase

BU2532AW General Description


New generation, high-voltage, high-speed switching npn transistor in a plastic envelope intended for use in horizontal deflection circuits of high resolution monitors.

BU2532AW Maximum Ratings

SYMBOL PARAMETER CONDTIONS
MIN.
MAX.
UNIT

VCESM
VCEO
IC
ICM
IB
IBM
-IB(AV)
IBM
Ptot
Tstg
Tj

 Collector to emitter voltage
Collector to emitter voltage (open base)
Collector current (DC)
Collector current peak value
Base current (DC)
Base current peak value
Reverse base current
Reverse base current peak value1
Total power dissipation
Storage temperature
Junction temperature		 VBE=0V
average over any 20 ms period
Ths25
-
-
-
-
-
-
-
-
-
-65
-
1500
800
16
40
10
15
200
10
125
150
150
V
V
A
A
A
A
mA
A
W

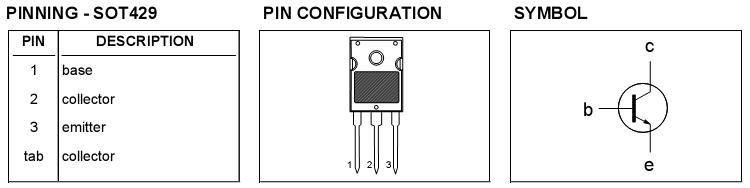

BU2532AW Connection Diagram

BU2532AW Connection Diagram

BU2532AW datasheet

BU2532AW
PDF/DataSheet Download
