Part Number: BU2611A



MFG: ROHM

Package Cooled: DIP



Description: The BU2611 PLL frequency synthesizers work up through the FM band. They feature built-in RF amps with low powe dissipat...


Urgent Purchase

BU2611A General Description


The BU2611 PLL frequency synthesizers work up through the FM band. They feature built-in RF amps with low powe dissipation and high sensitivity.

BU2611A Maximum Ratings

Parameter Symbol Limits Unit Condltions
Power supply voltage VDD -0.3~+7.0 V
Maximum input voltage VIN1 -0.3~+7.0 V CE,CK,CA,XIN,FMIN,AMIN
Maximum output voltage1 VOUT1 -0.3~+10.0 V P1,P2,P3,P4
Maximum output voltage2 VOUT2 -0.3~VDD+0.3 V PD1,PD2
Maximum output current IOUT 0~4.0 mA P0,P1,P2,P3,P4
Power dissipation BU2611A PD 1000*1 mW
BU2611AF/BU2611AFS 500*2
Operating temperature Topr -25~+75
Storage temperature Tstg -55~+125

*1 Reduced by 10mW for each increase in Ta of 1 over 25
*2 Reduced by 5mW for each increase in Ta of 1 over 25

BU2611A Features

1) Built-in high-speed prescaler can divide 130 MHzVCO.
2) In addition to the reference FM and AM, also offers the following 7 frequencies: 100kHz, 50kHz, 25kHz, 10kHz, 9kHz, 5kHz, and 1kHz.
3) 3-bit output port (open drain).
4) Clock output (400kHz).
5) Time base output (8Hz).
6) Serial data input (CE, CK, DA).

BU2611A Typical Application

Tuners (Mini components, radio cassette players, radio equipment, etc.)

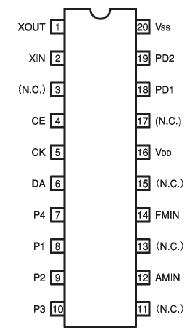

BU2611A Connection Diagram

BU2611A Connection Diagram

BU2611A datasheet

BU2611A
PDF/DataSheet Download
