Series: -
Number of Bits: 8
Mounting Type: Surface Mount
Sampling Rate (Per Second): *
Power Dissipation (Max): -
Voltage Supply Source: Analog and Digital
Data Interface: Parallel
Packaging: Tray
Number of Converters: 3
Number of Outputs and Type: 3 Current, Unipolar
Operating Temperature: -10°C ~ 70°C
Manufacturer: Rohm Semiconductor
Package / Case: 44-QFP
Settling Time: 40ns
Supplier Device Package: 44-QFP
Features: 1) 8-bit resolution.
2) Current output.
3) Low power consumption (typically 75mW).
4) High-speed operation.
5) Internal reference voltage circuit.

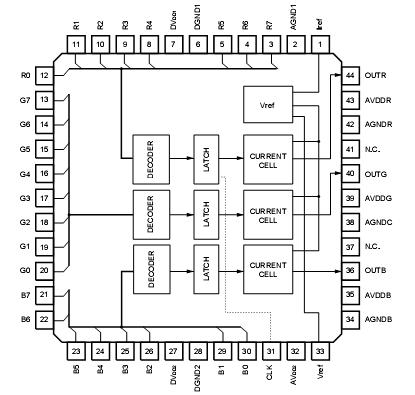

6) TTL input.ApplicationVideo CDs, CD-V, CD karaokePinout
Specifications
| Parameter |
Symbol |
Limits |
Unit |
| Power supply voltage |
DVDD |
0.5 ~ + 7.0 |
V |
| Analog power supply voltage |
AVDD |
DVDD 0.3 ~ DVDD + 0.3 |
V |
| Input voltage |
VIN |
0.5 ~ DVDD + 0.5 |
V |
| Output voltage |
VOUT |
0.5 ~ DVDD + 0.5 |
V |
| Storage temperature |
Tstg |
55 ~ + 125 |
mW |
| Power dissipation 1 |
PD |
500 |
|
* 1 Reduced by 5.0mW for each increase in Ta of 1°C over 25°C.DescriptionThe BU3616K, a CMOS IC, is a high-speed, low-power-consumption 3-channel 8-bit D / A converter. Its internal reference voltage source eliminates the need for an external reference voltage source.
Parameters: | Technical/Catalog Information | BU3616K |
| Vendor | Rohm Semiconductor |
| Category | Integrated Circuits (ICs) |
| Data Interface | Parallel |
| Number of Bits | 8 |
| Operating Temperature | -10°C ~ 70°C |
| Package / Case | 44-QFP |
| Packaging | Tray |
| Voltage Supply Source | Analog and Digital |
| Settling Time | 40ns |
| Drawing Number | * |
| Number of Converters | 3 |
| Power Dissipation (Max) | - |
| Number of Outputs and Type | 3 Current, Unipolar |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | BU3616K
BU3616K
|
