BU4053BC

Supply Current :
Maximum Power Dissipation :
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Supply Voltage - Min : 3 V
Number of Channels : 3 Channel
Package / Case : PDIP-16
Supply Voltage - Max : 18 V
On Resistance (Max) : 950 Ohms
On Time (Max) : 550 ns
Off Time (Max) : 550 ns
Propagation Delay Time : 45 ns, 20 ns, 15 ns
Packaging : Bulk

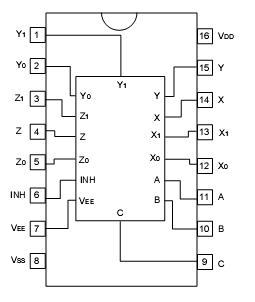

Pinout




Specifications

Parameter	Symbol	Limits	Unit
Power supply voltage 1	VDD	0.5 ~ + 20	V
Power supply voltage 2	VDD - VEE	0.5 ~ + 20	V
Power dissipation	Pd	1000 (DIP), 500 (SOP), 400 (SSOP)	mW
Operating temperature	Topr	40 ~ + 85
Storage temperature	Tstg	55 ~ + 150
Input voltage	VIN	0.5 ~ VDD + 0.5	V

Description

The BU4053BC, BU4053BCF, and  BU4053BCFV are multiplexers / demultiplexers capable of selecting and combining analog signals and digital signals in a 2 ch  3 configuration. Inhibit signals and control signals are used to turn on the switch corresponding to each of the channels. In addition, even if the logical amplitude (V_DD-V_SS) of the control signal is low, signals with a large amplitude (V_DD-V_EE) can be switched.
Also, as each switch has a low ON resistance, BU4053BC can be connected to a low impedance circuit.


Parameters:

Technical/Catalog Information	BU4053BC
Vendor	Rohm Semiconductor
Category	Integrated Circuits (ICs)
Type	Multiplexer/Demultiplexer
Voltage Supply Source	Dual Supply
Voltage - Supply, Single/Dual (±)	3 V ~ 18 V
Circuit	3 x 2:1
On-State Resistance	160 Ohm
Mounting Type	Through Hole
Package / Case	16-DIP (300 mil)
Packaging	Tube
Current - Supply	15A
Operating Temperature	-40°C ~ 85°C
Function	Multiplexer/Demultiplexer
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BU4053BC BU4053BC
