Part Number: BU4525DX



MFG: PHI

Package Cooled: TO3P-3

D/C: 06+

Description: Enhanced performance, new generation, high-voltage, high-speed switching npn transistor in a plastic full-pack envelope...


Urgent Purchase

BU4525DX General Description


Enhanced performance, new generation, high-voltage, high-speed switching npn transistor in a plastic full-pack envelope with an integrated damper diode intended for use in horizontal deflection circuits of colour television receivers and p.c monitors. Features exceptional tolerance to base drive and collector current load variations resulting in a very low worst case dissipation.

BU4525DX Maximum Ratings

SYMBOL PARAMETER CONDTIONS
MIN.
MAX.
UNIT

VCESM
VCEO
IC
ICM
IB
IBM
-IBM
Ptot
Tstg
Tj

 Collector to emitter voltage
Collector to emitter voltage (open base)
Collector current (DC)
Collector current peak value
Base current (DC)
Reverse base current
Reverse base current peak value1
Total power dissipation
Storage temperature
Junction temperature		 VBE=0V
Ths25
-
-
-
-
-
-
-
-
-
-55
-
1800
800
12
30
8
12
7
45
150
150
V
V
A
A
A
A
A
W

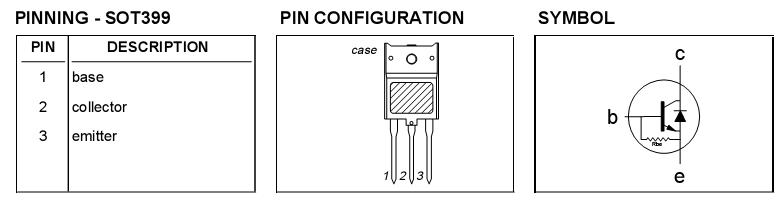

BU4525DX Connection Diagram

BU4525DX Connection Diagram

BU4525DX datasheet

BU4525DX
PDF/DataSheet Download

Find BU4525DX Suppliers
