BU4584B

Minimum Operating Temperature :
Operating Temperature Range :
Maximum Operating Temperature : + 85 C
Number of Circuits : 6
Logic Type : CMOS
Packaging : Tube
Supply Voltage - Min : 3 V
Package / Case : SOP-14
Logic Family : 4000
Supply Voltage - Max : 16 V
High Level Output Current : - 3 mA
Low Level Output Current : 3 mA
Propagation Delay Time : 125 ns, 60 ns, 50 ns


Features:

1) Low power dissipation.
2) Wide range of operating power supply voltage.
3) High input impedance.
4) High fan-out.
5) Direct drive of 2 L-TTL inputs and LS-TTL input.


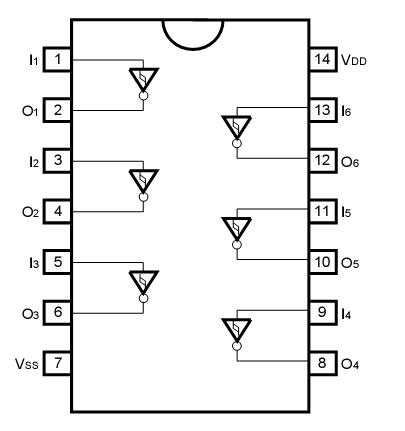

Pinout




Specifications

Parameter	Symbol	Limits	Unit
Power supply voltage	VDD	0.3 ~ + 18	V
Power dissipation	Pd	1000 (DIP), 450 (SOP), 350 (SSOP)	mW
Operating temperature	Topr	40 ~ + 85
Storage temperature	Tstg	55 ~ + 150
Input voltage	VIN	0.3 ~ VDD + 0.3	V

Description

The BU4584B, BU4584BF, and BU4584BFV are inverter-type Schmitt trigger circuits, with six circuits mounted on a single chip. These are ideal when enhanced noise immunity is required, and when wave form rectification circuits with slow rise or fall input times are involved.


Parameters:

Technical/Catalog Information	BU4584B
Vendor	Rohm Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	6 - Hex
Package / Case	14-DIP (300 mil)
Logic Type	Inverter with Schmitt Trigger
Packaging	Tube
Mounting Type	Through Hole
Number of Inputs	1
Current - Output High, Low	3mA, 3mA
Supply Voltage	3 V ~ 16 V
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	3 V ~ 16 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BU4584B BU4584B
