Purchase BU4S11, In-stock BU4S11 From SeekIC.
MFG:ROHM D/C:O9+
Part Number: BU4S11
MFG: ROHM
D/C: O9+
Description: The BU4S11 is a dual-input positive logic NAND gate. This is an ultra-compact logic IC with one circuit of the BU4011B ...
- Table of contents:
BU4S11
-
Suppliers
DataSheet
General Description
BU4S11 General Description
The BU4S11 is a dual-input positive logic NAND gate. This is an ultra-compact logic IC with one circuit of the BU4011B built into an SMP package.
BU4S11 Maximum Ratings
| Parameter | Symbol | Limits | Unit |
| Power supply voltage | VDD | VSS 0.3 ~ VSS + 18 | V |
| Power dissipation | Pd | 170 | mW |
| Input current | IIN | 10 | mA |
| Operating temperature | Topr | 40 ~ + 85 | |
| Storage temperature | Tstg | 55 ~ + 150 | |
| Input voltage | VIN | VSS 0.3 ~ VDD + 0.3 | V |
1 These values indicate the limits at which voltage can be applied to the terminal without causing destruction, but operation is not guaranteed at these values.
2 Power dissipation is reduced by 1.7mW for each increase in Ta of 1°C over 25°C.
BU4S11 Features
1) Low current dissipation.
2) Super-mini mold package designed for surface mounting.
3) Wide range of operating power supply voltage.
4) Capable of driving two L-TTL inputs and one LS-TTL input directly
2) Super-mini mold package designed for surface mounting.
3) Wide range of operating power supply voltage.
4) Capable of driving two L-TTL inputs and one LS-TTL input directly
BU4S11
PDF/DataSheet Download
- Datasheet: BU4S11
- File Size: 40269 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
- ·BU4000B
- ROHM
- CMOS logic IC
- 30583 KB
- ·BU4001B
- ROHM [Rohm]
- Quad 2-input NOR gate
- 47135 KB
- ·BU4001BF
- ROHM [Rohm]
- Quad 2-input NOR gate
- 47135 KB
- ·BU4011
- ROHM [Rohm]
- Quad 2-input NAND gate
- 49875 KB
- ·BU4011B
- ROHM [Rohm]
- Quad 2-input NAND gate
- 49875 KB
- ·BU4011BF
- ROHM [Rohm]
- Quad 2-input NAND gate
- 49875 KB
- ·BU4011BFV
- ROHM [Rohm]
- Quad 2-input NAND gate
- 49875 KB
- ·BU4015B
- ROHM [Rohm]
- Dual 4-bit static shift register
- 51339 KB
BU4S11 Relative Products

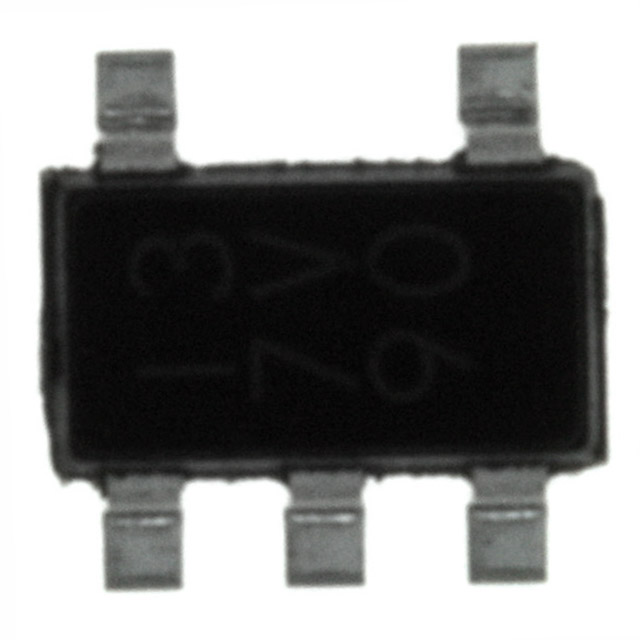

BU4S01G2-TR
