BU8710AKS
Suppliers
DataSheet
General Description

Purchase BU8710AKS, In-stock BU8710AKS From SeekIC.

MFG:N/A Package Cooled:QFP D/C:08+

BU8 Series Datasheet download

Five Points

Part Number: BU8710AKS

MFG: N/A

Package Cooled: QFP

D/C: 08+

Description: This is an ADPCM transcoder which conforms to the G.721 standards listed in the 1988 edition of the CCITT recommen-dati...

BU8710AKS General Description

This is an ADPCM transcoder which conforms to the G.721 standards listed in the 1988 edition of the CCITT recommen-dations. Simultaneous processing of four encoder and decoder channels is possible, enabling superb affinity with the quadruple TDMA which is a standard for PHS (personal handy phone) systems. In turn, this enables voice processing units for individual base stations in the public telephone network to be configured on single chips.

BU8710AKS Maximum Ratings

Parameter	Symbol	Limits	Unit
Power supply voltage	V_DD	7.0	V
Input voltage	V_IN	V_SS-0.3~V_DD+0.3	V
Output voltage	V_OUT	V_SS-0.3~V_DD+0.3	V
Operating temperature	Topr	-25~+75
Storage temperature	Tstg	-55~+125

BU8710AKS Features

1) Can be connected to -law and A-law PCM codec through a serial interface. (Both long frames and short frames can be accommodated.)
2) Various functions can be controlled through a CPU interface.
3) An internal power save mode can be controlled separately for individual channels. (Separate encoder and decoder control are possible.) In addition, external pin control enables power consumption to be reduced for the chip as a whole.
4) An internal muting function can be controlled separately for individual channels. (Separate encoder and decoder control are possible.)
5) An internal function silence detection is provided, which can be controlled separately for individual channels. Applicable only to encoders.)
6) An internal background noise generation function is provided, which can be controlled separately for individual channels. (Applicable only to decoders.)
7) The G.711 (-law or A-law) output level can be attenuated freely on individual channels.
8) An internal 64kbps data through mode is provided, which can be controlled separately for individual channels.
9) Internal 32kbps and 64kbps data loop back modes are provided, which can be controlled separately for individual channels.
10) An internal clock generator circuit is provided.
11) SQFP 80 pin package is used.

BU8710AKS Typical Application

PHS base stations

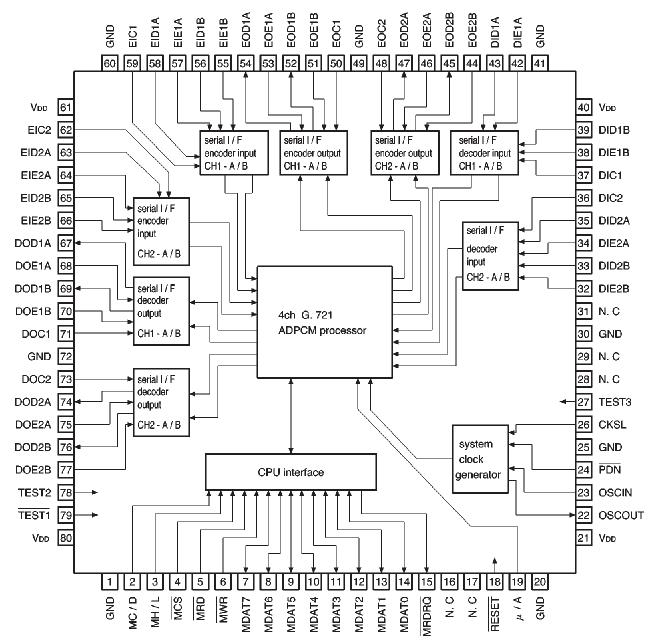

BU8710AKS Connection Diagram

BU8710AKS datasheet

BU8710AKS
PDF/DataSheet Download

Datasheet: BU8710AKS
File Size: 615850 KB
Manufacturer: ROHM [Rohm]
Click here to Download

·BU806
MOTOROLA [Motorola, Inc]
8.0 AMPERE DARLINGTON NPN POWER TRANSISTORS 60 WATTS 200 VOLTS
42335 KB
·BU806/D
8.0 AMPERE DARLINGTON
107102 KB
·BU807
MOSPEC [Mospec Semiconductor]
POWER TRANSISTORS(8.0A,150-200V,60W)
119294 KB
·BU808
FUJI [Fuji Electric]
8 AMP SILICON BRIDGE RECTIFIER
657394 KB
·BU808DFH
STMICROELECTRONICS [STMicroelectronics]
HIGH VOLTAGE FAST-SWITCHING NPN POWER DARLINGTON TRANSISTOR
227683 KB
·BU808DFI
STMICROELECTRONICS [STMicroelectronics]
HIGH VOLTAGE FAST-SWITCHING NPN POWER DARLINGTON
73982 KB
·BU808DFP
STMICROELECTRONICS [STMicroelectronics]
HIGH VOLTAGE FAST-SWITCHING NPN POWER DARLINGTON
73268 KB
·BU810
STMICROELECTRONICS [STMicroelectronics]
MEDIUM VOLTAGE NPN FAST-SWITCHING DARLINGTON TRANSISTOR
65504 KB

Related Part Number

BU8710AKS Relative Products

BU8709KN
BU8709KN is a melody sound source LSI for cellular phones. This LSI generates 64 high quality polyphonic tones through high sampling rate (fs=44.1KHz).1 ADPCM encoder and 2 ADPCM decoders functions are embedded, BU8709KN is providing mixing capabilities. It ...
BU-87-0
INSULATOR FOR BU-85,85C SRS BK
BU-85C
CLIP CROCODILE COPPER 10A

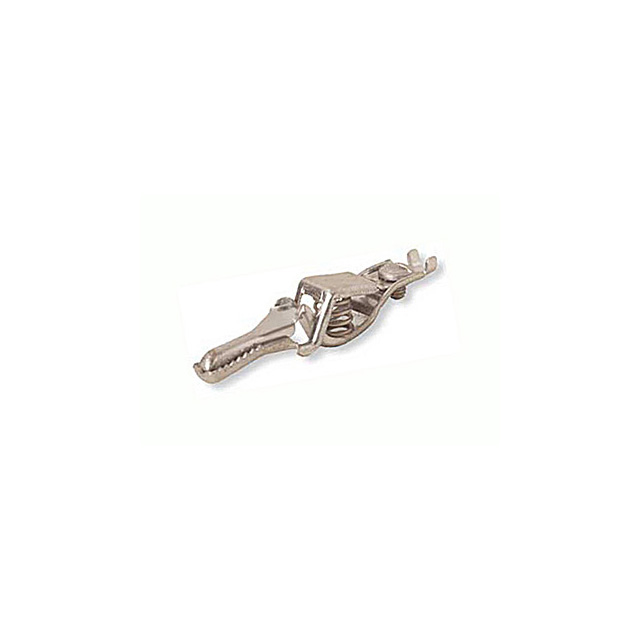

BU-85
