Part Number: BUF05703
Description: The BUFxx703 are a series of multi-channel buffers targeted towards gamma correction in high-resolution liquid crystal ...
- Table of contents:
BUF05703
-
Suppliers
DataSheet
General Description
BUF05703 General Description
The BUFxx703 are a series of multi-channel buffers targeted towards gamma correction in high-resolution liquid crystal display (LCD) panels. The number of gamma correction channels required depends on a variety of factors and differs greatly from design to design. Therefore, various channel options are offered. For additional space and cost savings, a VCOM channel with higher current drive capability is integrated in the BUF07703 and BUF05703.
A flow through pin out has been adopted to allow simple PCB routing and maintain the cost effectiveness of this solution. All inputs and outputs of the BUFxx703 incorporate internal ESD protection circuits that prevent functional failures at voltages up to 4kV HBM and 1.5kV CDM.
The various buffers within the BUFxx703 are carefully matched to the voltage I/O requirements for the gamma correction application. Each buffer is capable of driving heavy capacitive loads and offers fast load current switching. The VCOM channel has increased output drive of > 100mA and can handle even larger capacitive loads.
The BUF07703 is available in the HTSSOP PowerPADTM package for dramatically increased power dissipation capability. The BUF06703 and BUF05703 are available in standard TSSOP-16 and TSSOP-14 packages.
BUF05703 Maximum Ratings
|
PARAMETERS |
BUFXX703 |
UNIT |
| Supply, VDD(2) |
16.5 |
V |
| Input Voltage Range, VI |
VDD |
V |
| Continuous Total Power Dissipation | See Dissipation Rating Table | |
| Operating FreeAir Temperature Range, TA |
0 to +85 |
°C |
| Maximum Junction Temperature, TJ |
150 |
°C |
| Storage Temperature Range, TSTG |
65 to 150 |
°C |
| Lead Temperature 1.6mm (1/16 inch) from Case for 10s |
260 |
°C |
BUF05703 Features
Gamma Correction Channels: 6, 4
Integrated VCOM Buffer
Excellent Output Current Drive:
Gamma Channels: > 10mA
VCOM: > 100mA typ
Large Capacitive Load Drive Capability
Rail-to-Rail Output
PowerPAD Package: BUF07703
Low-Power/Channel: < 250A
Wide Supply Range: 4.5V to 16V
Specified for 0°C to 85°C
High ESD Rating: 4kV HBM, 1.5kV CDM
Integrated VCOM Buffer
Excellent Output Current Drive:
Gamma Channels: > 10mA
VCOM: > 100mA typ
Large Capacitive Load Drive Capability
Rail-to-Rail Output
PowerPAD Package: BUF07703
Low-Power/Channel: < 250A
Wide Supply Range: 4.5V to 16V
Specified for 0°C to 85°C
High ESD Rating: 4kV HBM, 1.5kV CDM
BUF05703 Typical Application
LCD Flat Panel Displays
LCD Television Displays
LCD Television Displays

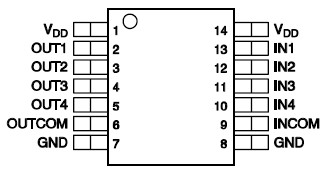

BUF05703 Connection Diagram
BUF05703
