Part Number: BUF06703



MFG: 3100

Package Cooled: TI



Description: The BUFxx703 are a series of multi-channel buffers targeted towards gamma correction in high-resolution liquid crystal ...


Urgent Purchase

BUF06703 General Description


The BUFxx703 are a series of multi-channel buffers targeted towards gamma correction in high-resolution liquid crystal display (LCD) panels. The number of gamma correction channels required depends on a variety of factors and differs greatly from design to design. Therefore, various channel options are offered. For additional space and cost savings, a VCOM channel with higher current drive capability is integrated in the BUF07703 and BUF05703.

A flow through pin out has been adopted to allow simple PCB routing and maintain the cost effectiveness of this solution. All inputs and outputs of the BUFxx703 incorporate internal ESD protection circuits that prevent functional failures at voltages up to 4kV HBM and 1.5kV CDM.

The various buffers within the BUFxx703 are carefully matched to the voltage I/O requirements for the gamma correction application. Each buffer is capable of driving heavy capacitive loads and offers fast load current switching. The VCOM channel has increased output drive of > 100mA and can handle even larger capacitive loads.

The BUF07703 is available in the HTSSOP PowerPADTM package for dramatically increased power dissipation capability. The BUF06703 and BUF05703 are available in standard TSSOP-16 and TSSOP-14 packages.

BUF06703 Maximum Ratings

PARAMETERS
BUFXX703
UNIT
Supply, VDD(2)
16.5
V
Input Voltage Range, VI
VDD
V
Continuous Total Power Dissipation See Dissipation Rating Table
Operating FreeAir Temperature Range, TA
0 to +85
°C
Maximum Junction Temperature, TJ
150
°C
Storage Temperature Range, TSTG
65 to 150
°C
Lead Temperature 1.6mm (1/16 inch) from Case for 10s
260
°C

BUF06703 Features

 Gamma Correction Channels: 6, 4
 Integrated VCOM Buffer
 Excellent Output Current Drive:
Gamma Channels: > 10mA
VCOM: > 100mA typ
 Large Capacitive Load Drive Capability
 Rail-to-Rail Output
 PowerPAD Package: BUF07703
 Low-Power/Channel: < 250A
 Wide Supply Range: 4.5V to 16V
 Specified for 0°C to 85°C
 High ESD Rating: 4kV HBM, 1.5kV CDM

BUF06703 Typical Application

 LCD Flat Panel Displays
 LCD Television Displays

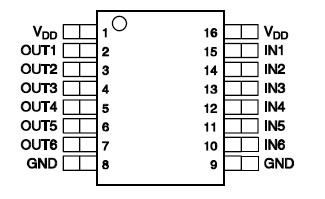

BUF06703 Connection Diagram

BUF06703 Connection Diagram

BUF06703 datasheet

buf06703
PDF/DataSheet Download

  • Datasheet: buf06703
  • File Size: 499113 KB
  • Manufacturer: BURR-BROWN [Burr-Brown Corporation]
  • Click here to Download
