Purchase BUJ204A, In-stock BUJ204A From SeekIC.

MFG:PHIL/ST/MOT  Package Cooled:TO-220  D/C:06+

BUJ204A Product Image

BUJ Series Datasheet download

Five Points

Part Number: BUJ204A



MFG: PHIL/ST/MOT

Package Cooled: TO-220

D/C: 06+

Description: High-voltage, high-speed planar-passivated npn power switching transistor in a TO220AB envelope intended for use in hig...


Urgent Purchase

BUJ204A General Description


High-voltage, high-speed planar-passivated npn power switching transistor in a TO220AB envelope intended for use in high frequency electronic lighting ballast applications, converters, inverters, switching regulators, motor control systems, etc.

BUJ204A Maximum Ratings

SYMBOL PARAMETER CONDTIONS
MIN.
MAX.
UNIT
VCESM
VCEO
VCBO
IC
ICM
IB
IBM
Ptot
Tstg
Tj		 Collector to emitter voltage
Collector to emitter voltage (open base)
Collector to base voltage (open emitter)
Collector current (DC)
Collector current peak value
Base current (DC)
Base current peak value
Total power dissipation
Storage temperature
Junction temperature		 VBE=0V
Ths25
-
-
-
-
-
-
-
-
-65
-
850
450
850
6
10
2
4
100
150
150
V
V
V
A
A
A
A
W

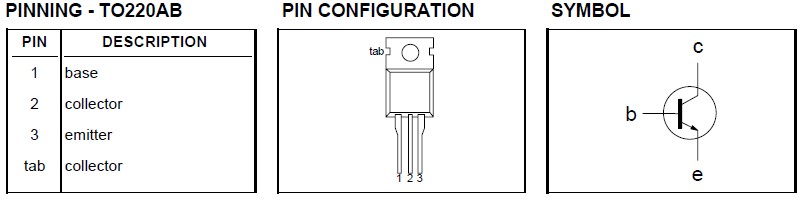

BUJ204A Connection Diagram

BUJ204A Connection Diagram

BUJ204A datasheet

BUJ204A
PDF/DataSheet Download
