Part Number: BUJ301AX



MFG: PHIL/ST/MOT

Package Cooled: TO-220

D/C: 06+

Description: High-voltage, high-speed planar-passivated npn power switching transistor in a plastic full-pack envelope intended for ...


Urgent Purchase

BUJ301AX General Description


High-voltage, high-speed planar-passivated npn power switching transistor in a plastic full-pack envelope intended for use in high frequency electronic lighting ballast applications, converters, inverters, switching regulators, motor control systems, etc.

BUJ301AX Maximum Ratings

SYMBOL PARAMETER CONDTIONS
MIN.
MAX.
UNIT
VCESM
VCEO
VCBO
IC
ICM
IB
IBM
Ptot
Tstg
Tj		 Collector to emitter voltage
Collector to emitter voltage (open base)
Collector to base voltage (open emitter)
Collector current (DC)
Collector current peak value
Base current (DC)
Base current peak value
Total power dissipation
Storage temperature
Junction temperature		 VBE=0V
Ths25
-
-
-
-
-
-
-
-
-65
-
1000
500
1000
0.5
1
0.2
0.3
32
150
150
V
V
V
A
A
A
A
W

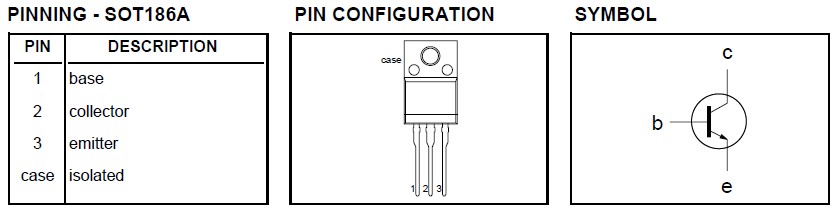

BUJ301AX Connection Diagram

BUJ301AX Connection Diagram

BUJ301AX datasheet

BUJ301AX
PDF/DataSheet Download

Find BUJ301AX Suppliers
